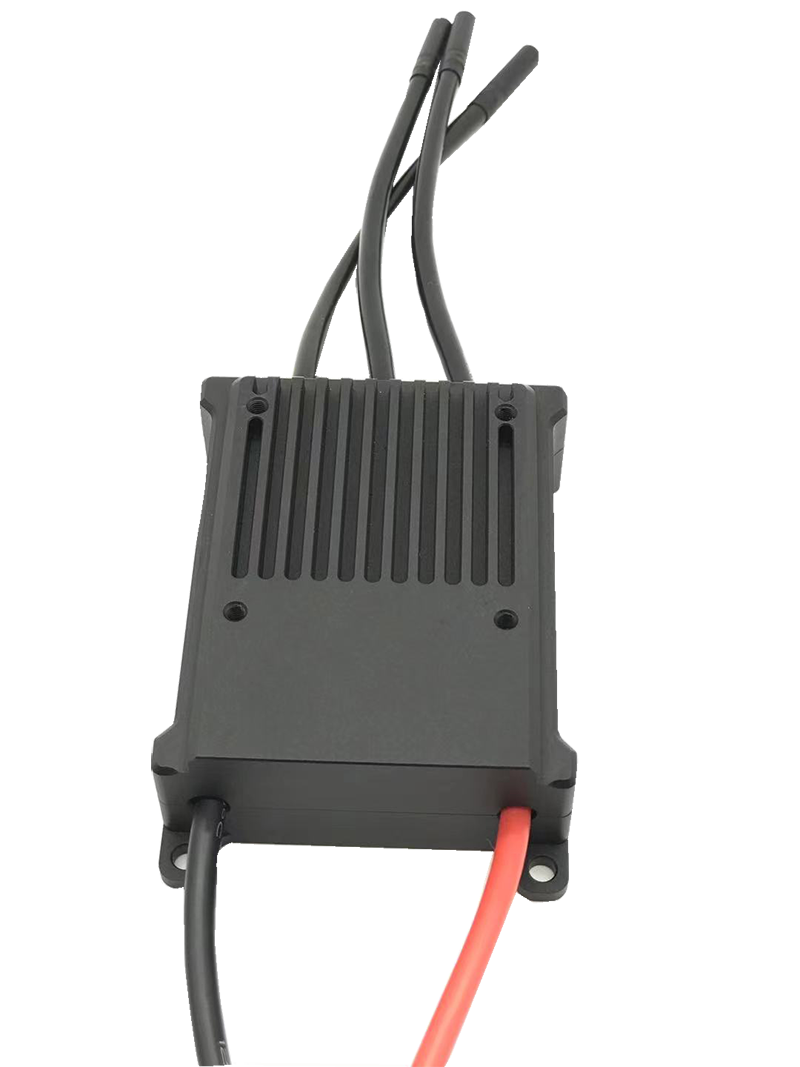

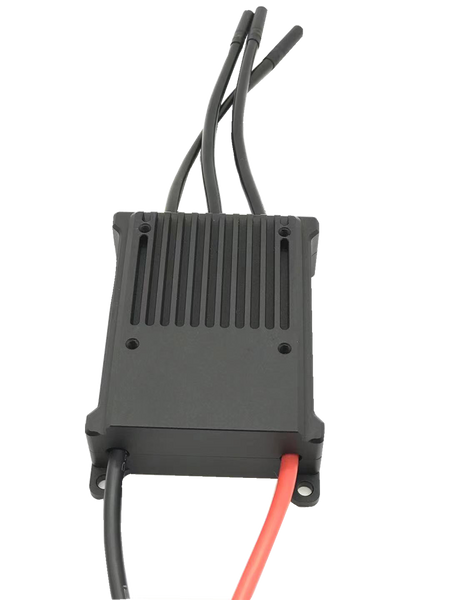

75V 100A single ESC single ubox based on VESC with internal IMU BMI160 module
75V 100A single ESC single ubox based on VESC with internal IMU BMI160 module
75V 100A single ESC single ubox based on VESC with internal IMU BMI160 module
75V 100A single ESC single ubox based on VESC with internal IMU BMI160 module
75V 100A single ESC single ubox based on VESC with internal IMU BMI160 module
75V 100A single ESC single ubox based on VESC with internal IMU BMI160 module
75V 100A single ESC single ubox based on VESC with internal IMU BMI160 module
75V 100A single ESC single ubox based on VESC with internal IMU BMI160 module

75V 100A single ESC single ubox based on VESC with internal IMU BMI160 module

Regular price $209.00 Sale price $199.00
Unit price  per

Single Ubox ----Let your DIY much safer and more flexible!

Technical spec:

  • Firmware:  based on 75V300A VESC
  • Voltage: 75v(16S safely)
  • Current: 100A continuous (The duration depends on the temperature around the product, heat dissipation and air circulation)
  • Size: 92.1mm*61.5mm*26.1mm(L*W*H)

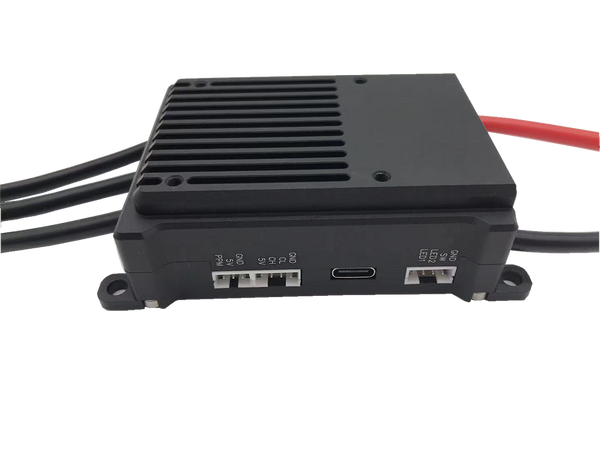

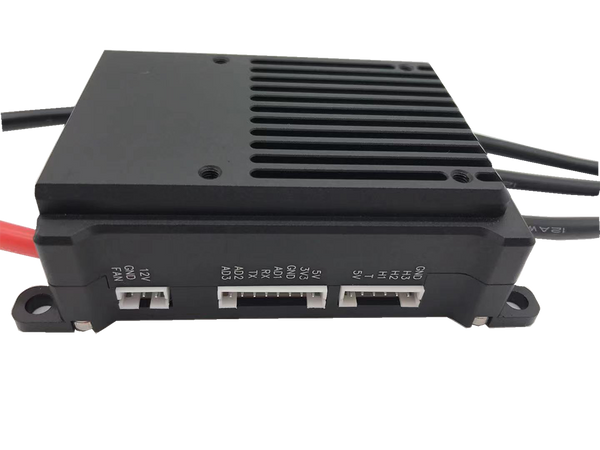

  • Ports available: PPM,UART(adc1/adc2/adc3),Canbus,Hall sensor,TypeC usb and a hidden SWD port
  • FET PN: FDBL0150N80
  • Power button type: latching button
  • Without integration of Bluetooth and 2.4G hz receiver
  • Cables and connectors:  12cm 12AWG phase wires with 4.0mm female bullet connector, 10cm 12AWG battery cable with XT90 male connector
  • Status indicator in power button LED lights:
    • Running--Green light
    • Stop/begin throttling--Blinking green
    • Abnormal--Blinking Red

    Features in detail:

    All circuit(3.3v|5v|12v) are protected with auto-recovery fuse

    Spintend single ubox use recovery resistor to protect circuits

    Add IMU(BMI160) for Balanced Board’s Convinience

    Spintend single ubox integrates inner IMU module

    Extra featured 12v power supply , support adding cooling fan or Light

    spintend single ubox provide 12v power supply

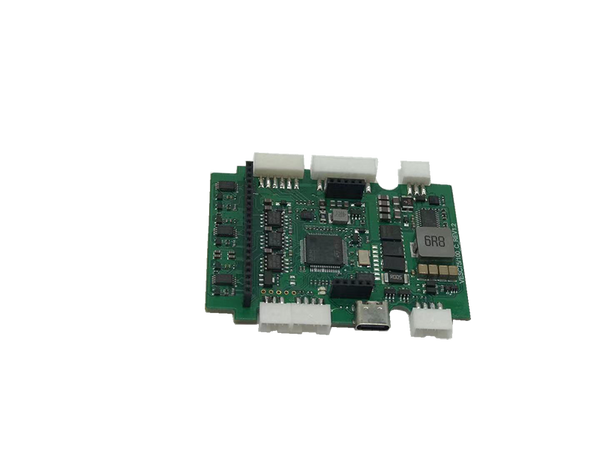

    Straight dip pin design , make two boards separatable, and joint connection more reliable

    straight dip pins for logic board and power stage for single ubox

    More features:

    • Add antispark swtich circuit
    • Type C port is much more reliable
    • Compatible with official vesc tool and firmware
    • Support most of the vesc original features

      Shipping:

      • package comes: single ubox /power button/ppm cable/canbus cable/hall sensor cable/multifunction(inclduing UART) cable

      Firmware:

      1. The product is shipped with latest firmware(6.0), Read this blog to know more previous firmware version.
      2. Warning: Open source firmware has risky feature, Only hardware is in warranty protection.
      3. Get 6.0 firmware and vesc tool here.

      Source code:

       The source code can be checked here.
