Ubox V2 100V 200A Dual Motor Controller based on VESC
The UNIQUE BOX(Based on VESC ) for YOU!
1. Technichal Data

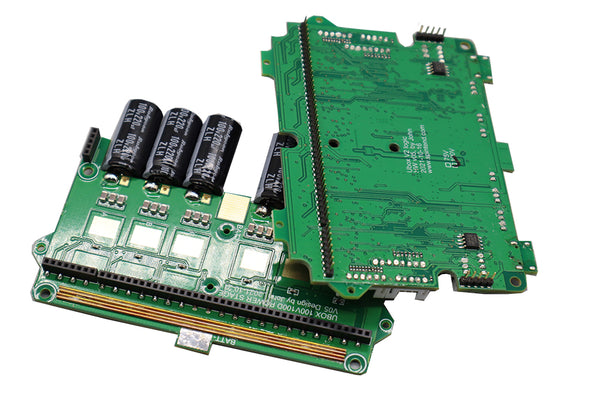

- Based on 100/250 VESC project
- Voltage : 16-100V (Safe for 4S to 22S LiIon, firmware limited max voltage as 96V)
- Current : Max 100A/channel, the dual max 200A
- 12V output: Max 3A(the fan/ horn/brake light/ front light share this current)
- 5V output : Max output 500mA
- Switch button: current Max 15mA
- Size and weight: 129 x 83x25mm / 375g
- Cables: Motor cable: 12AWG 12cm / Battery Cable: 10AWG 15cm
2. Why choose Ubox V2?

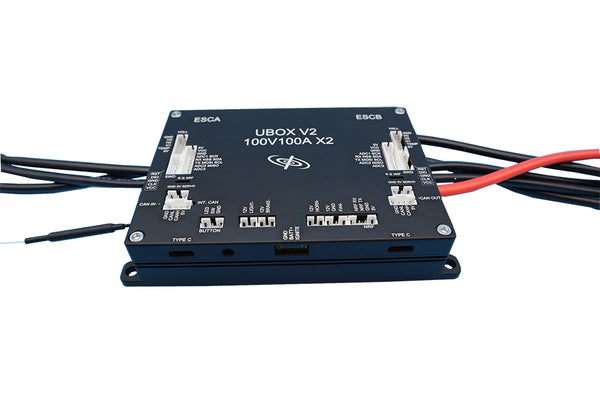

Full premium aluminum case with clear ports drawing in top case, convenient for wiring, with extra back holes for fixation.

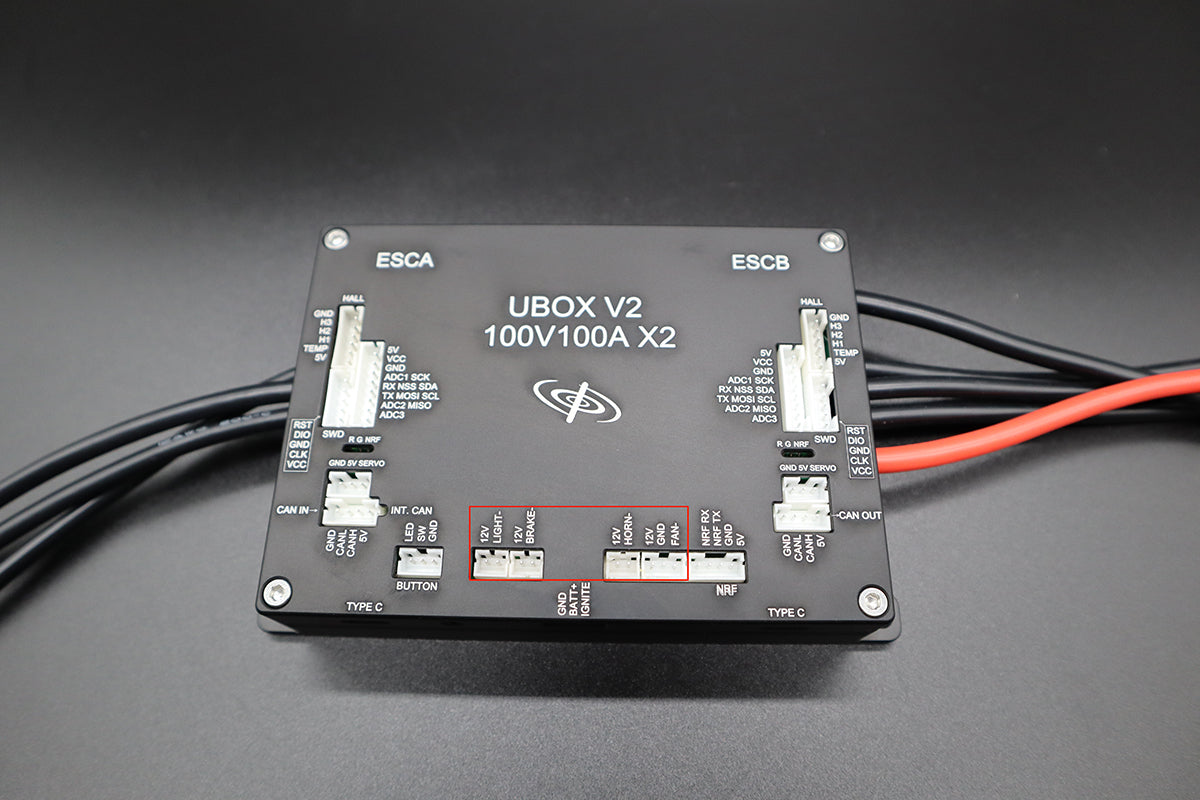

Three groups of 12v power supply for Horn/ Front light/Brake light, and one extra cooling fan power socket
Added Ignite key and meter reading power socket for ebike escooter application convenience.

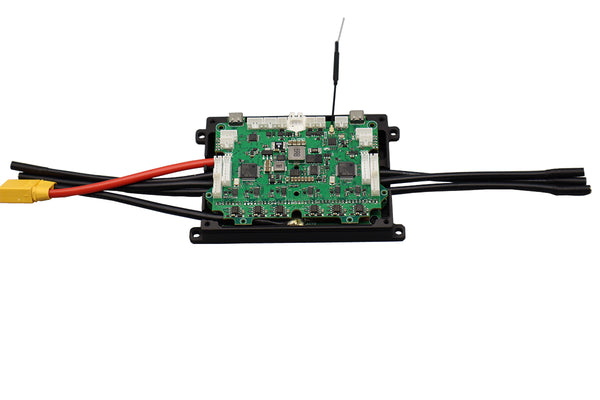

Integrated internal 2.4ghz receiver with extended antenna(horizontal or vertical option)to fit for different enclosures
The best partners to excellently fulfill more unique functions of Ubox V2 : remote control horn and lights.
Get Uni1 V2 remote here
Easy for 4WD set up, one power button to turn on off two ubox via can bus connection.
4. Except for Unique Features, it owns all VESC typical features:
- TI INA240A1 Current-Sense Amplifier
- USB, CAN, serial, I2C, SPI, 2x ADC, RC PPM inputs / outputs.
- Sensored and sensorless FOC with auto-detection of all motor parameters
- Hall sensor, ABI/SPI encoder
- Current and voltage measurement on all phases
- Regenerative braking
- USB programmable and nice GUI
- Adjustable protection against
- Low input voltage | High input voltage | High motor current | High input current
- High regenerative braking current (separate limits for the motor and the input)
- Rapid current changes (ramping)
- High RPM (separate limits for each direction)
- Motor and driver overheating
- ...and much more
5. Suggestions
- How to use VESC ? Please refer to this blog
- Strongly recommend to use Ubox together with Uni1 Remote
- Ubox V2 100V 200A dual motor controller and Accessory pack
- Cables : Power button / PPM cable/ Hall sensor cables*2/ 12v power cables*3/ Can bus cable/Ignite cable / Multifunction cable(UART&ADC)/XT90S connecotr female
