Ewheel ADC adapter V3.1 for diy ebike escooter with vesc
The Aadapter is compatible with normal ESC and all other VESC.
All in one function adapter for diy Electric skateboar Escooter with VESC :
- Horn, Head light, Turn Signal light, Brake and rear light, and reverse light support.
- High, middle, low, 3 level throttle support.
- Motor reverse and cruise support.
- Buzzer to remind turn and settings.
- Support both hall brake and mechanical brake input.
- Support bidirectional throttle(two-way throttle)
- Two / one motor drive support.
- Total output port (for horn/front lights/turn signal lights/brak lights) max current is 3A,12V
- Size: 63 x 53 x 12.5 mm (same size with V2/V3 adapter)
What 's upgraded from Adapter V3?
Function Port :
Notes:
① Only connect one this UART cable in Ubox, it means two motors run in same step.
② Connect both two UART cables in Ubox, if you want to run two motors independently, then need to remove the can cable among two Ubox
③ Cruise function works by a swtich
④ Reverse funftion works by a switch
⑤ This kind of brake lever has internal swtich, it can trigger on the brake light
How to Wire ADC adapter V3.1 with different voltage regulator?
Type1 : Normal DC to DC convertor
Type2: Ubox with 12v power supply / Type3: Mini convertor with EN switch
How to program it in VESC TOOL?
Please refer to this user manual
FAQ:
Will other VESC be compatible with Ewheel ADC adapter V3.1?
Yes, it works with other VESC and normal ESC(Non-VESC), but still have some difference on the power supply for the lights/horn function.
Ubox(single /dual) : there is 12v power supply port(fan port), which can supply power to the ewheel ADC adapter's output parts(horn and lights etc.)
Other VESC: mostly only have 5v output, you need to source 5v horn/lights to work with ewheel adc adapter v3.1
Can I use it for normal ESC, NOT VESC ?
YES, it works with normal ESC.
Shipping comes:

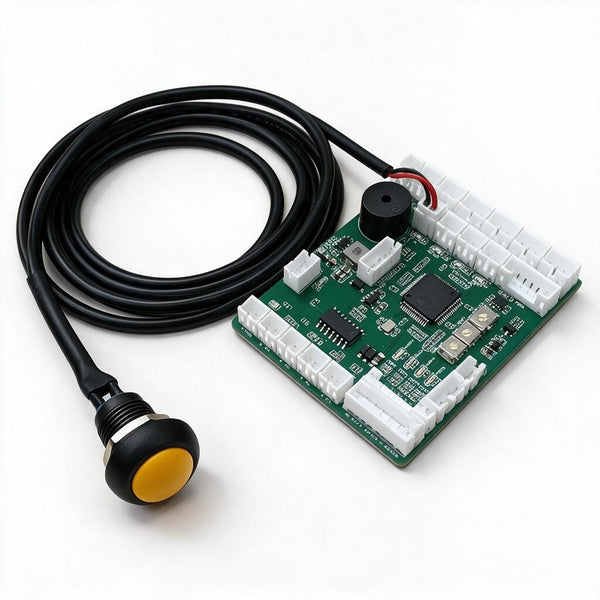

- Ewheel ADC adapter V3.1 (recommend to work with single ubox 85v 150A ESC)
- Cables (2pc* 8pin UART cable, 1pc* 3pin with 2wires, 5pcs*3pin cables,12pcs *2pin cables )
- Options for single /dual mode switch button :
- spec 12mm latching button
- cable length: 80cm
