Single Ubox Aluminum controller 85V 250A based on VESC
Warning! Don't try more than 85v power !
Electircal Spec:
- Firmware : shipped with custom firmware .
- 2 groups of 12v power port:
- 12v fan port: 3pin connector
- 12 power port : 4pin connector
- 12V port total current < 4A
- Voltage: Max voltage 85V
- Current: 250A max (The duration depends on the temperature around the product, heat dissipation and air circulation）
- Ports available: PPM,UART(adc1/adc2),Canbus,Hall sensor,TypeC USB, SWD port, NRF port, Ignite Key port, Power button port/12V power port *2
- Cables : 12cm 10AWG phase wires , 15cm 12AWG battery cables
- Size: 140mm*91mm(Including bottom ears)*24mm / 140mm*76mm(Excluding bottom ears)*24mm
- Power button LED lights functional indication:
- Running--Green light
- Stop/begin throttling--Dim green
- Abnormal--Blinking Red
- Key Parts Spec:
- Mofet Part No: JMSH1001ATL-13
- Current amplifier PN: INA240A1
- Off state current less than 200uA
Design Feature

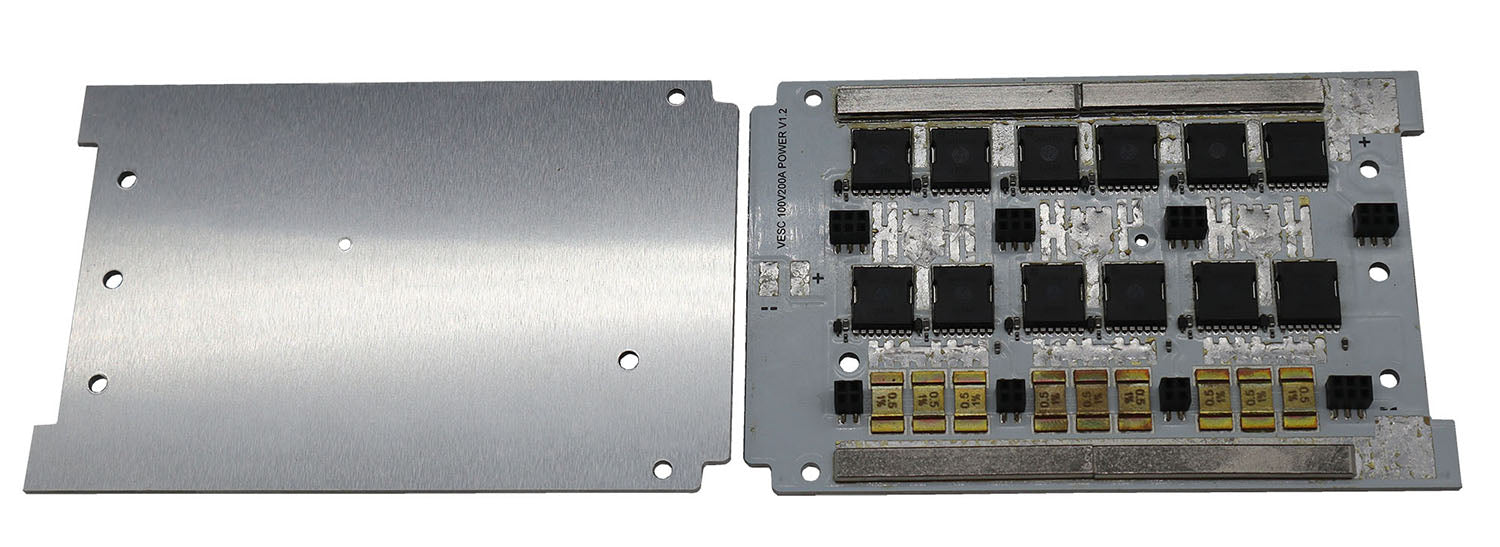

Aluminum Powerboard will transfer heat much quicker. Attention: It doesn't reduce heat source, still need cooling solution (eg. add heatsink)
It supports can bus to turn on off , much convinient to do 2WD or 4WD setup

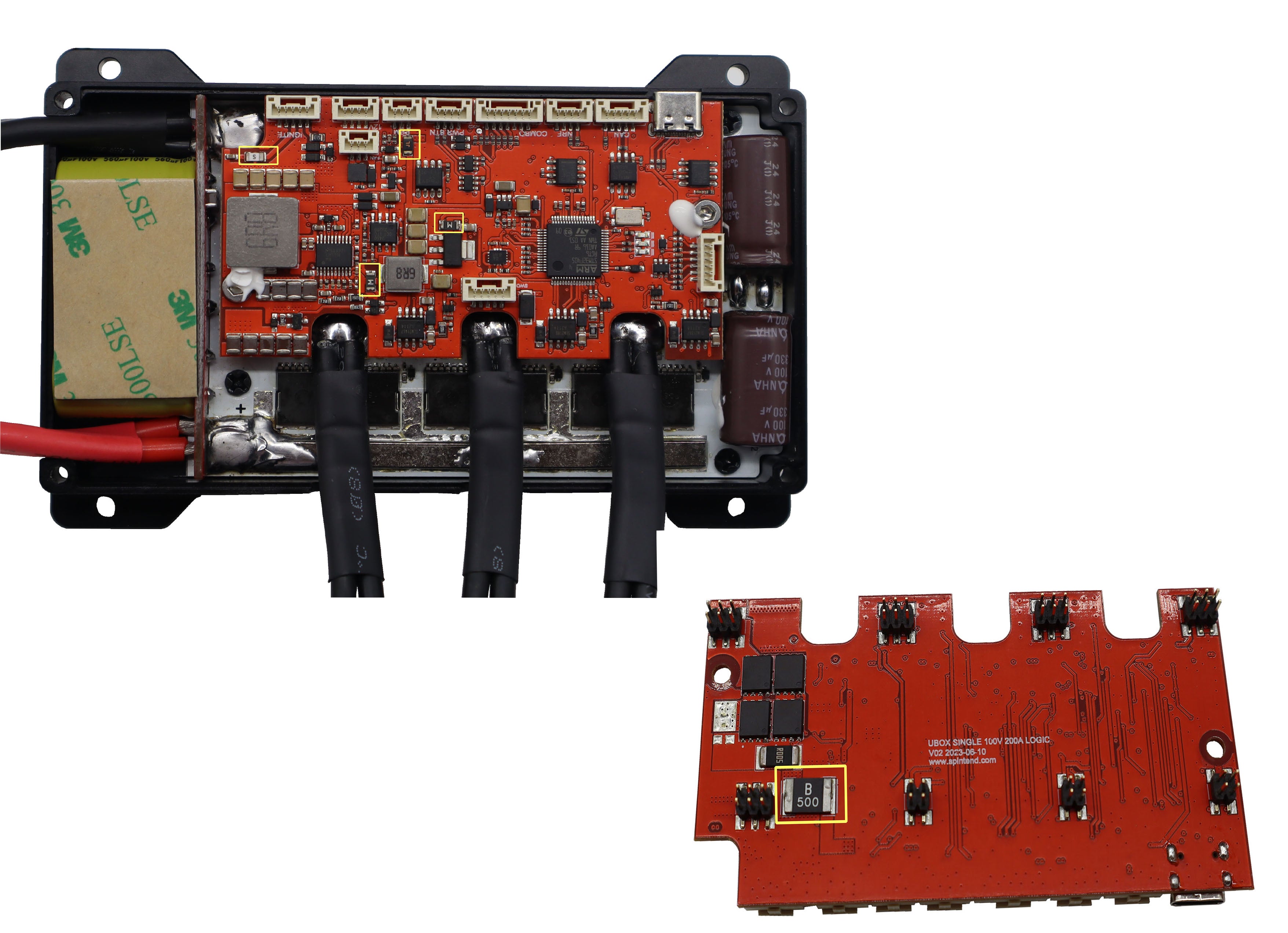

All power circuit(12v/3.3v/5v) is protected by recovery fuse, as is the ignite key port.
More convinient power on port and extra 12v power port, and NRF port for Bluetooth module.
Build inside BMI160 module,it's convinient for diy balanced board
Shipping comes:
-
Shipping will come with Aluminum case and latest firmware
- Accessory pack includes:
- power button*1
- ppm cable*1
- can bus cable*1
- hall sensor cable*1
- 4pin 12v power cable*1
- fan port transfer cable*1
- 3pin ignite port cable*1
- Multifunction cable(UART&ADC) *1
- NRF port cable*1
Firmware:
- The product is shipped with latest firmware 6.2, using unlimited firmware will void warranty protection.
- Warning: Open source firmware has risky feature, Only hardware is in warranty protection.
Attention: Spintend reserve rights to do any change on the product without inform to those purchased before change, including but not limited to parts replacement and design for optimization.
