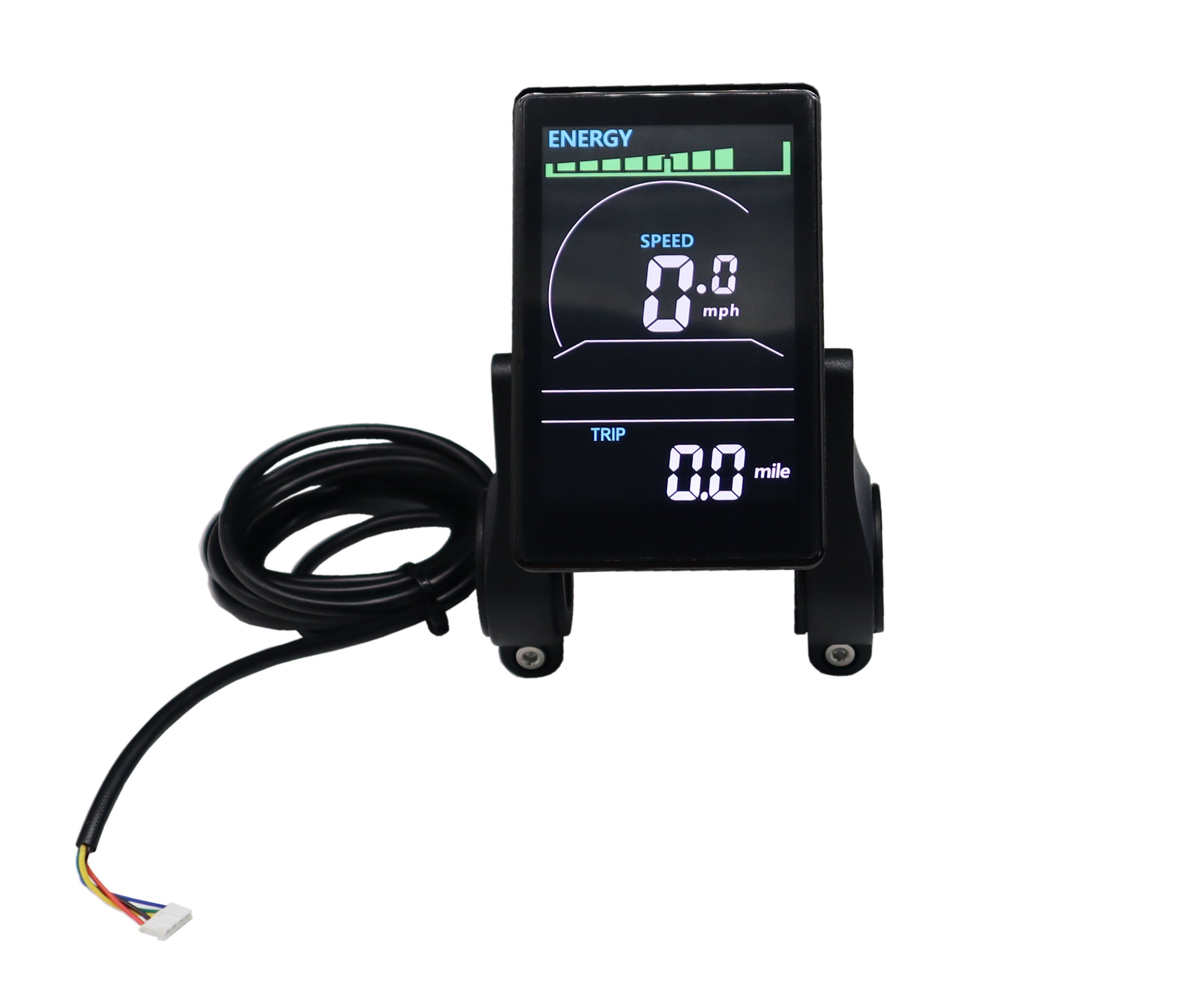

Plug and Play Simple Display for VESC controller
Regular price
$49.00
Sale price
$39.00
Unit price
per
Features:
- Super Easy to use, simply plug and play

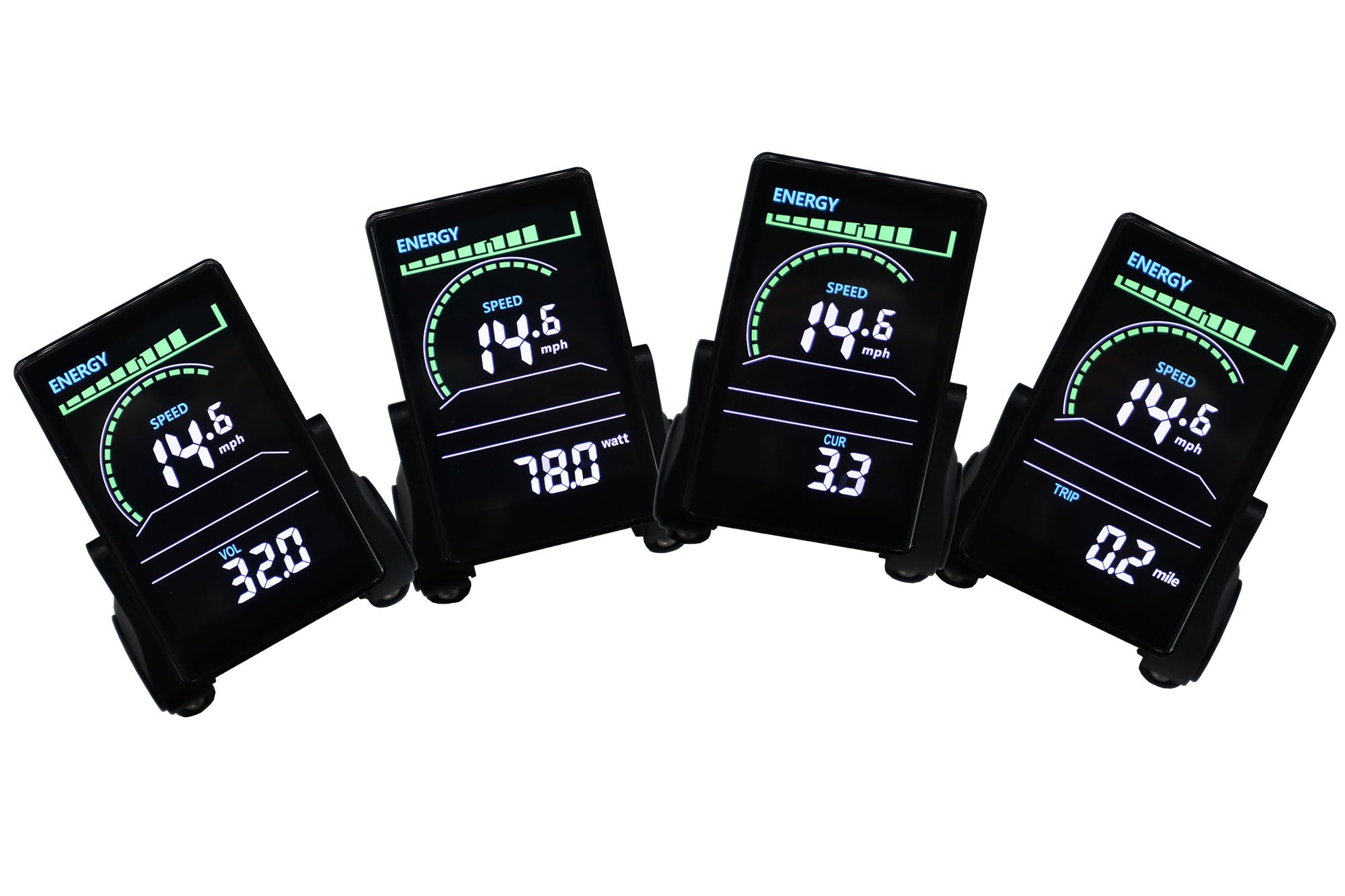

- Fully display key telemetry data:Real time Speed/ Trip /Current/ Watts/Voltage
- Display is widely compatible with different VESC, 5v to power on
- Compatible with VESC firmware version from 5.2 to the newest, and upgradable through UART port.
- External USB port for charge : accepts 12V-72V wide input voltage.
- Display Type: 3.6'' LCD
- Cable Length: 1.8m
- USB charge port ：type A

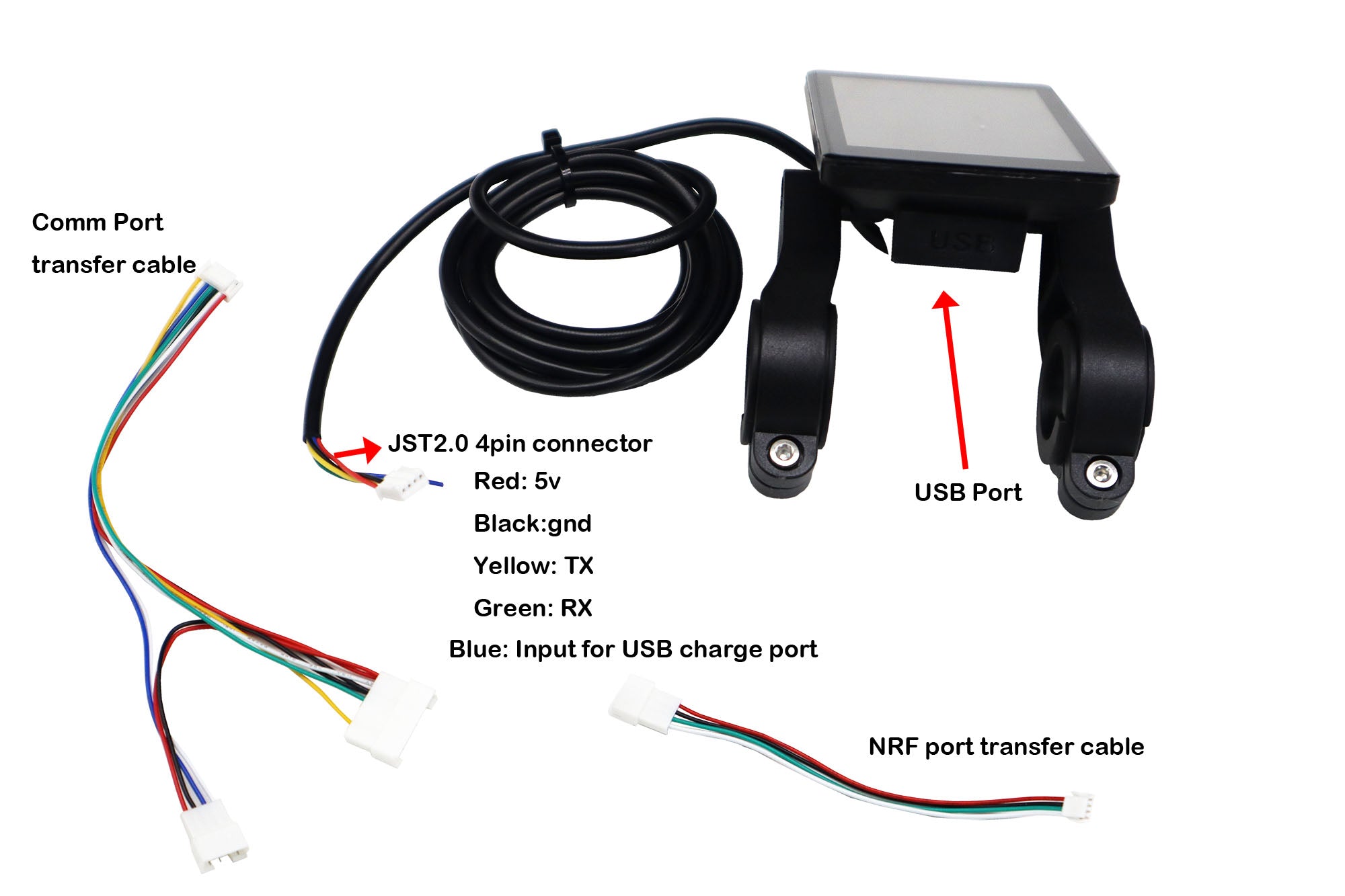

Simple Display Cable and Wirings
| Display cable color | Function |
| Red | 5V |
| Black | GND |
| Yellow | TX |
| Green | RX |
| Blue | Input for USB charge port |
Wiring in Ubox 's Comm Port Or NRF port.
User Manul
You can check more information in user manual
Shipping

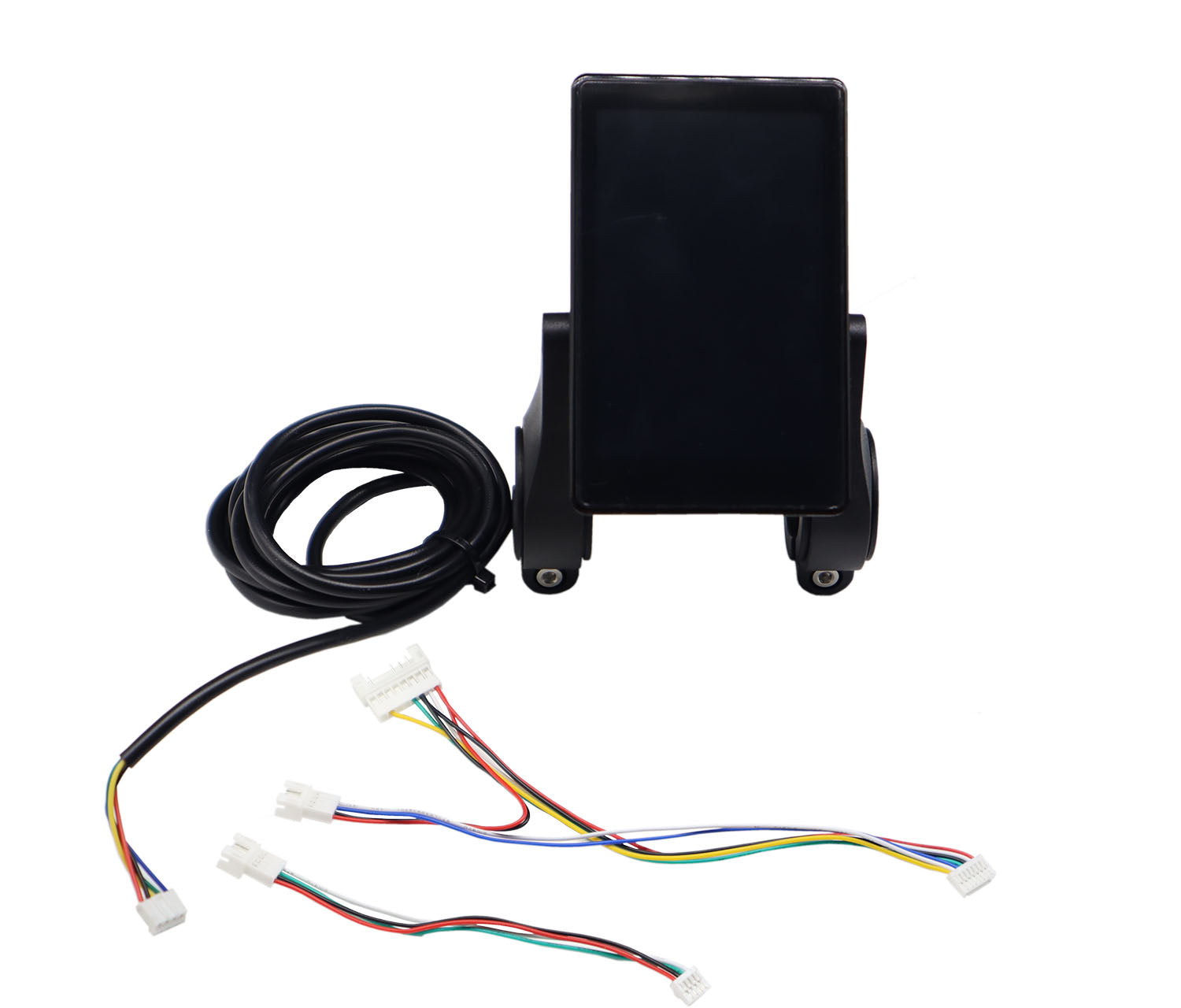

Shipping comes with :
Simple Display *1
NRF transfer cable*1
Comm port transfer cable*1
