Technichal Data:
- Max Voltage: 60V
- Rated power: 3000W
- Poles: 30
- Max RPM : 1500
- Cable length: 1.05m
Test data in vesc tool :
ERPM is 6408 , under 20.1v inputs with no loading , the calculated KV is 21.25
Under 20v inputs, the motor detected current is 51.38A, so if input 60v, it can reach 3000W .

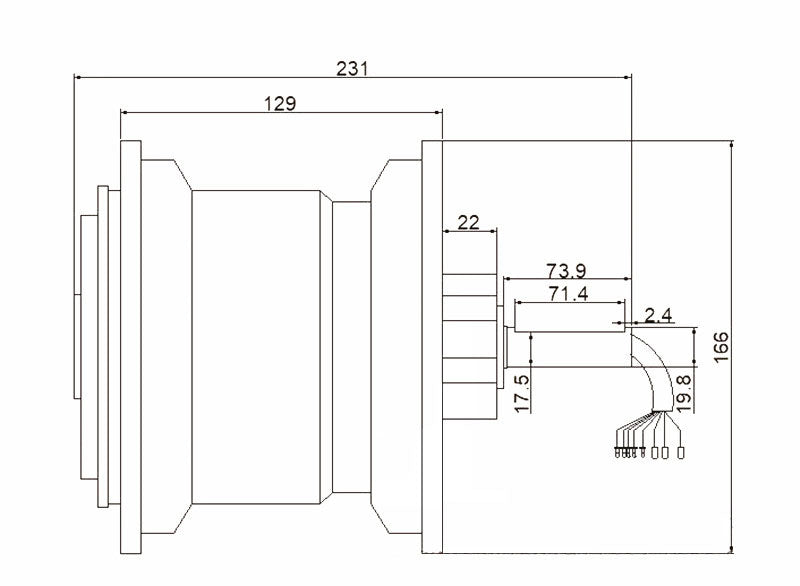

![10inch 6x6.0 fat tire hubmotor diagram](https://cdn.shopifycdn.net/s/files/1/0274/5522/5900/files/3000Whubmotorsize.jpg?v=1678780243)
