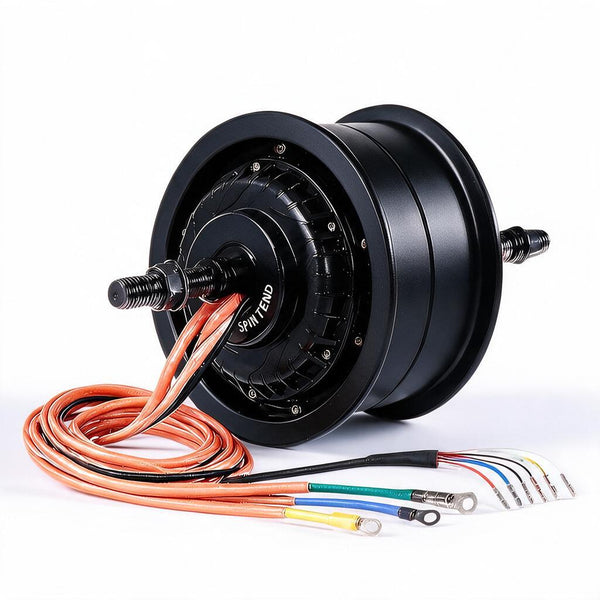

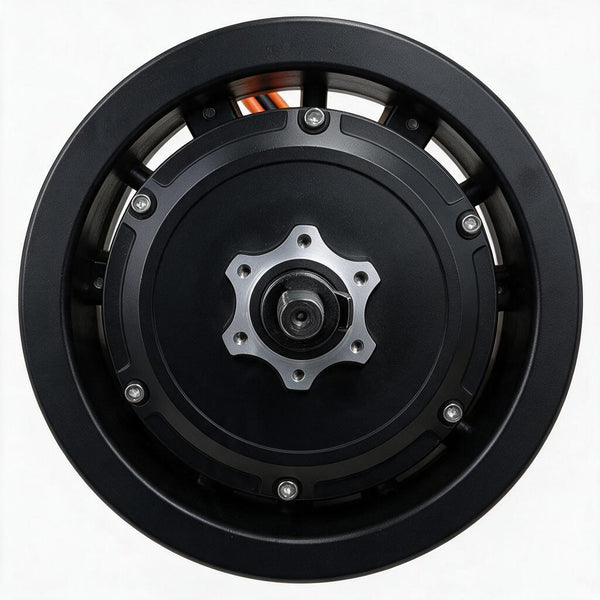

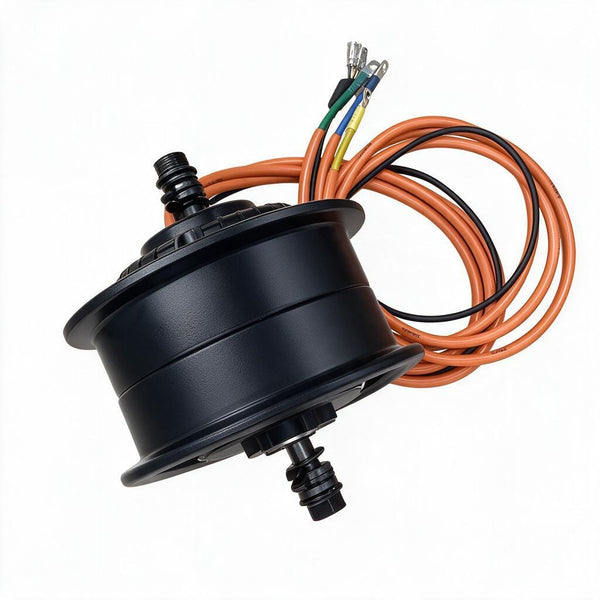

6.5'' 3800W-7000W Strong torque hubmotor for DIY fast scooter
6.5'' 3800W-7000W Strong torque hubmotor for DIY fast scooter
6.5'' 3800W-7000W Strong torque hubmotor for DIY fast scooter
6.5'' 3800W-7000W Strong torque hubmotor for DIY fast scooter
6.5'' 3800W-7000W Strong torque hubmotor for DIY fast scooter
6.5'' 3800W-7000W Strong torque hubmotor for DIY fast scooter
6.5'' 3800W-7000W Strong torque hubmotor for DIY fast scooter
6.5'' 3800W-7000W Strong torque hubmotor for DIY fast scooter

6.5'' 3800W-7000W Strong torque hubmotor for DIY fast scooter

$219.00

Upgrade version :

  •  Upgrade the magnets from N38SH to N40SH.
  • Upgrade the winding copper cables to 180degree anti-high temp cables.
  • Power can increase 500-800W, torque increase 10Nm

 Remark:

  • The data is tested with 60V voltage ,without loading,(ignore controller, it only assist to trigger motor), the bigger magnets , the slower rpm.

  • But  when the motor is paired with VESC controller, giving more current and increase voltage, the bigger magnets motor, the bigger power and faster speed can be gained.

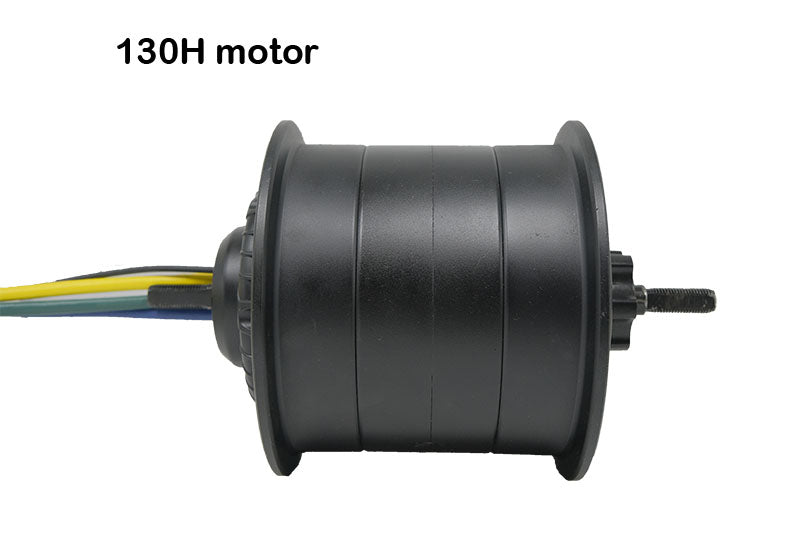

Motor version 70H 75H 80H 90H 130H
Voltage 60v-96v  60v-96v 60v-96v 60-96V 60v-96v
Power 3800W 4500W 5000W 6000W 7000W
No load RPM 3000RPM 2900RPM 2600RPM 2300RPM 1800RPM
Stator Size 110mm 110mm 110mm 110mm 110mm
Cable size 10mm² (7AWG) 10mm² (7AWG) 10mm² (7AWG) 10mm² (7AWG) 10mm² (7AWG)
Motor Type 6.5'' Half-Split  same same same same

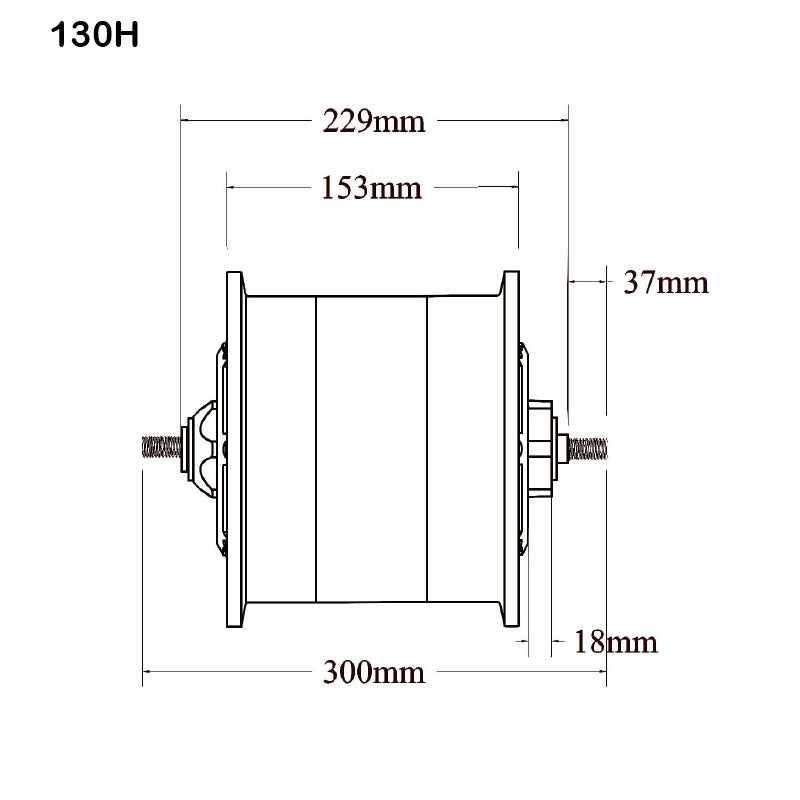

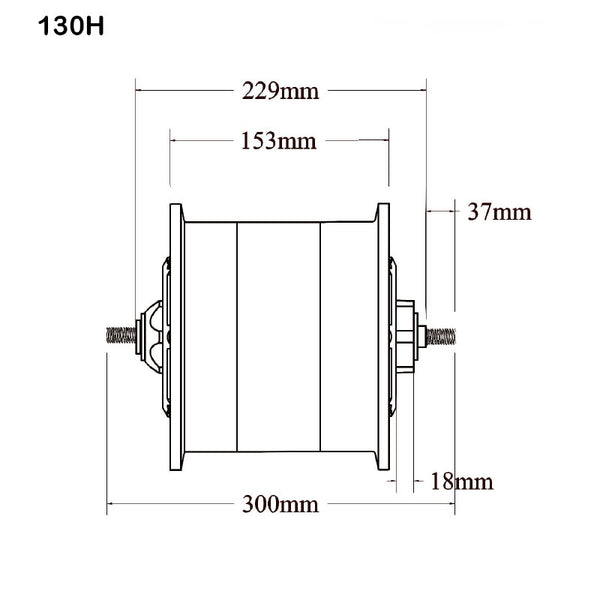

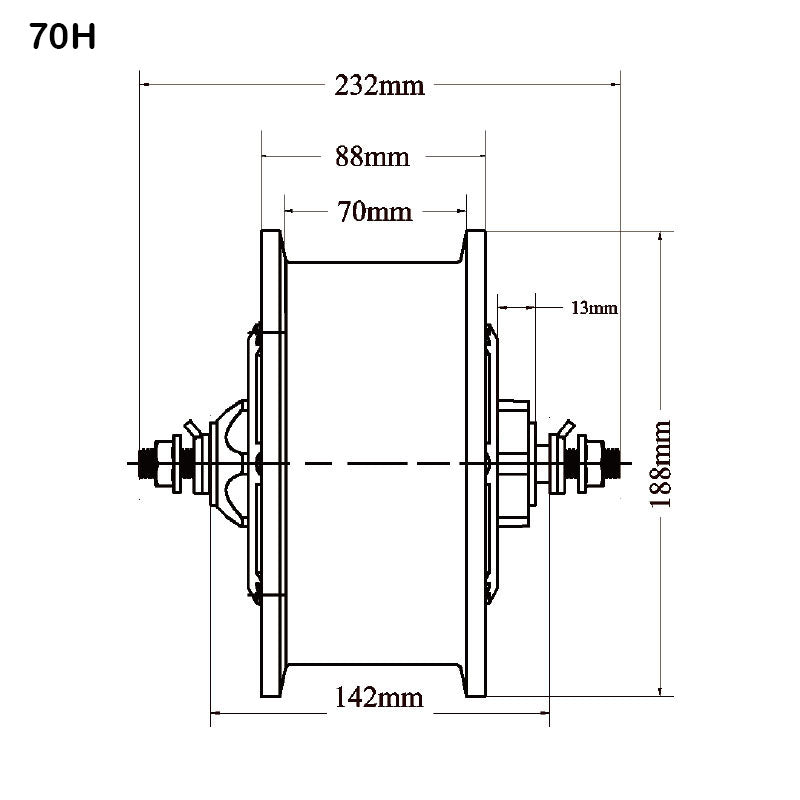

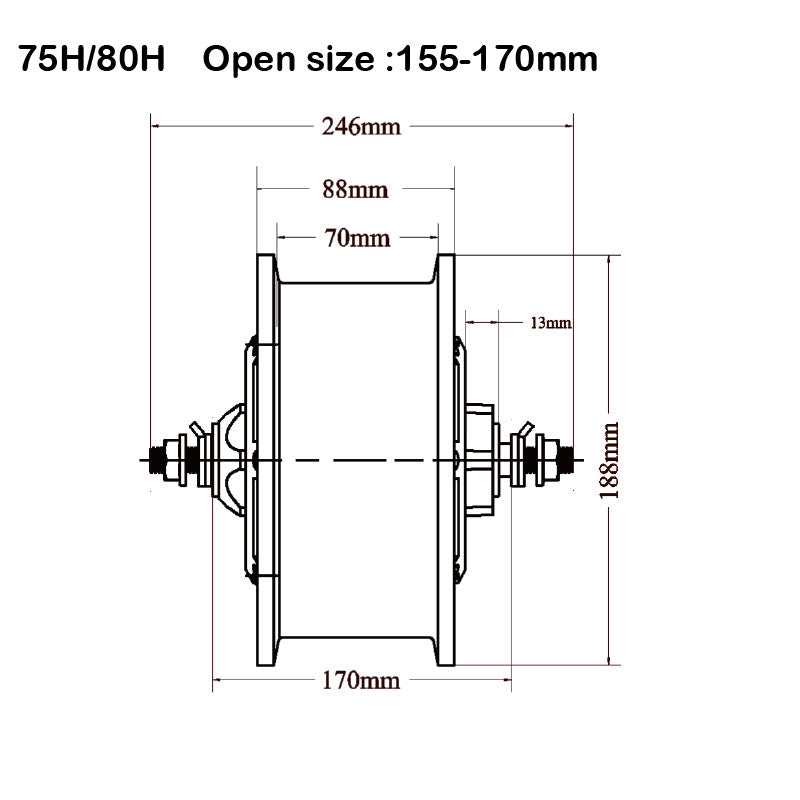

Drop out size 142mm 155-170mm 155-170mm 155-170mm 229mm
KV 43/30/20 39/23/17 37/22/16 25/20/14 25
Max Speed 140 KM/H 130 KM/H 120KM/H 110KM/H 100KM/H
Brake Type Disc Brake same same same same
Max Torque 75Nm 78Nm 80Nm 90Nm 100Nm
Wheel  90/65-6.5 110/55-6.5 Inner Tube 90/65-6.5 110/55-6.5 Inner Tube

90/65 6.5 110/55-6.5 Inner Tube

90/65 6.5 110/55-6.5 Inner Tube

13/14/15 x5.0-6..5       Inner Tube
