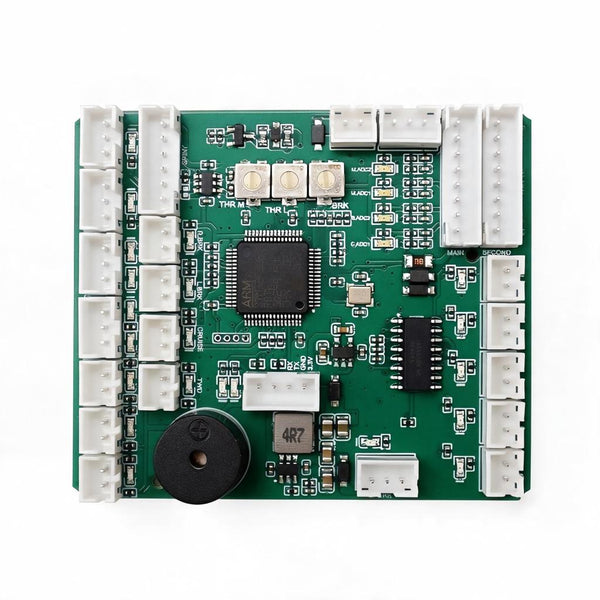

Ewheel ADC adapter V3.1 for diy ebike escooter with vesc

$49.00 $30.00

Single/Dual mode switch

Without single/dual switch button With single/dual switch button

Quantity

Horn, Head light, Turn Signal light, Brake and rear light, and reverse light support.
High, middle, low, 3 level throttle support.
Motor reverse and cruise support.
Buzzer to remind turn and settings.
Support both hall brake and mechanical brake input.
Support bidirectional throttle(two-way throttle)
Two / one motor drive support.
Total output port (for horn/front lights/turn signal lights/brak lights) max current is 3A,12V
Size: 63 x 53 x 12.5 mm (same size with V2/V3 adapter)

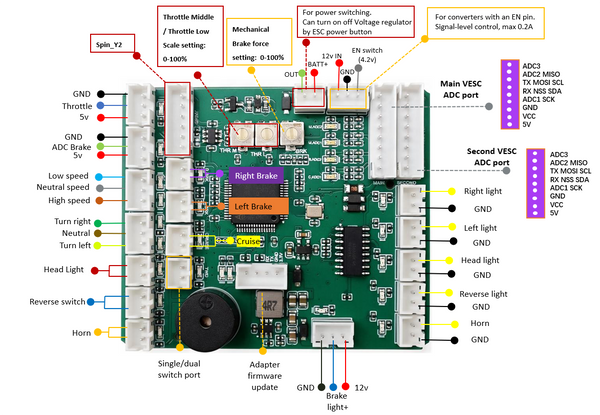

① Only connect one this UART cable in Ubox, it means two motors run in same step.

② Connect both two UART cables in Ubox, if you want to run two motors independently, then need to remove the can cable among two Ubox

③ Cruise function works by a swtich

④ Reverse funftion works by a switch

⑤ This kind of brake lever has internal swtich, it can trigger on the brake light

Please refer to this user manual

Yes, it works with other VESC and normal ESC(Non-VESC), but still have some difference on the power supply for the lights/horn function.

Ubox(single /dual) : there is 12v power supply port(fan port), which can supply power to the ewheel ADC adapter's output parts(horn and lights etc.)

Other VESC: mostly only have 5v output, you need to source 5v horn/lights to work with ewheel adc adapter v3.1

Can I use it for normal ESC, NOT VESC ?

YES, it works with normal ESC.

Ewheel ADC adapter V3.1 (recommend to work with single ubox 85v 150A ESC)
Cables (2pc* 8pin UART cable, 1pc* 3pin with 2wires, 5pcs*3pin cables,12pcs *2pin cables )
Options for single /dual mode switch button :
