Foot Pad Sensor Adapter for DIY onwheel DIY balanced board
Adapter function port:
![SPINTEND FSR FOR diy onewheel](https://cdn.shopify.com/s/files/1/0274/5522/5900/files/foot_pad_sensor_adapter_function_port.jpg?v=1656488216)
Adapter Wiring
![spintend foot pad adapter for diy balanced board diy unicycle](https://cdn.shopify.com/s/files/1/0274/5522/5900/files/connection_with_wire_cable.png?v=1656488271)
FSR electrical spec:
- 10KG weight range
- Static resistance: >10% MΩ
- Sensor trigger :
-
Trigger: milage*2% kg
- Delay: <5%
- Voltage: 3-5V
- Response time : < 20ms

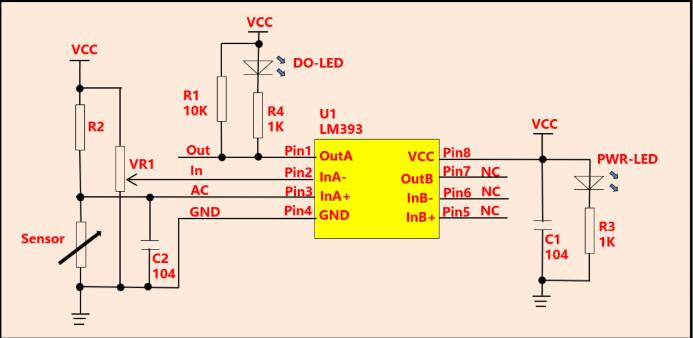

Foot pad sensor electric scheme
![spintend foot pad sensor elctric scheme](https://cdn.shopifycdn.net/s/files/1/0274/5522/5900/files/Sensor_electric_diagram.jpg?v=1656489801)

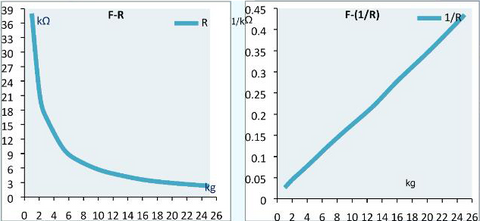

FSR force Curve
The resistance changes according to difference weight under certain test conditions
![Spintend FSR sensor force curve](https://cdn.shopifycdn.net/s/files/1/0274/5522/5900/files/sensor_resistor_and_weight_change_diagram_480x480.png?v=1656489946)
Shipping comes:
Adapter : adapter and 1pc 2pin 10cm cable
FSR: only FSR
Adapter with FSR : make notes if you want sordering with cable (2pin 10cm )
