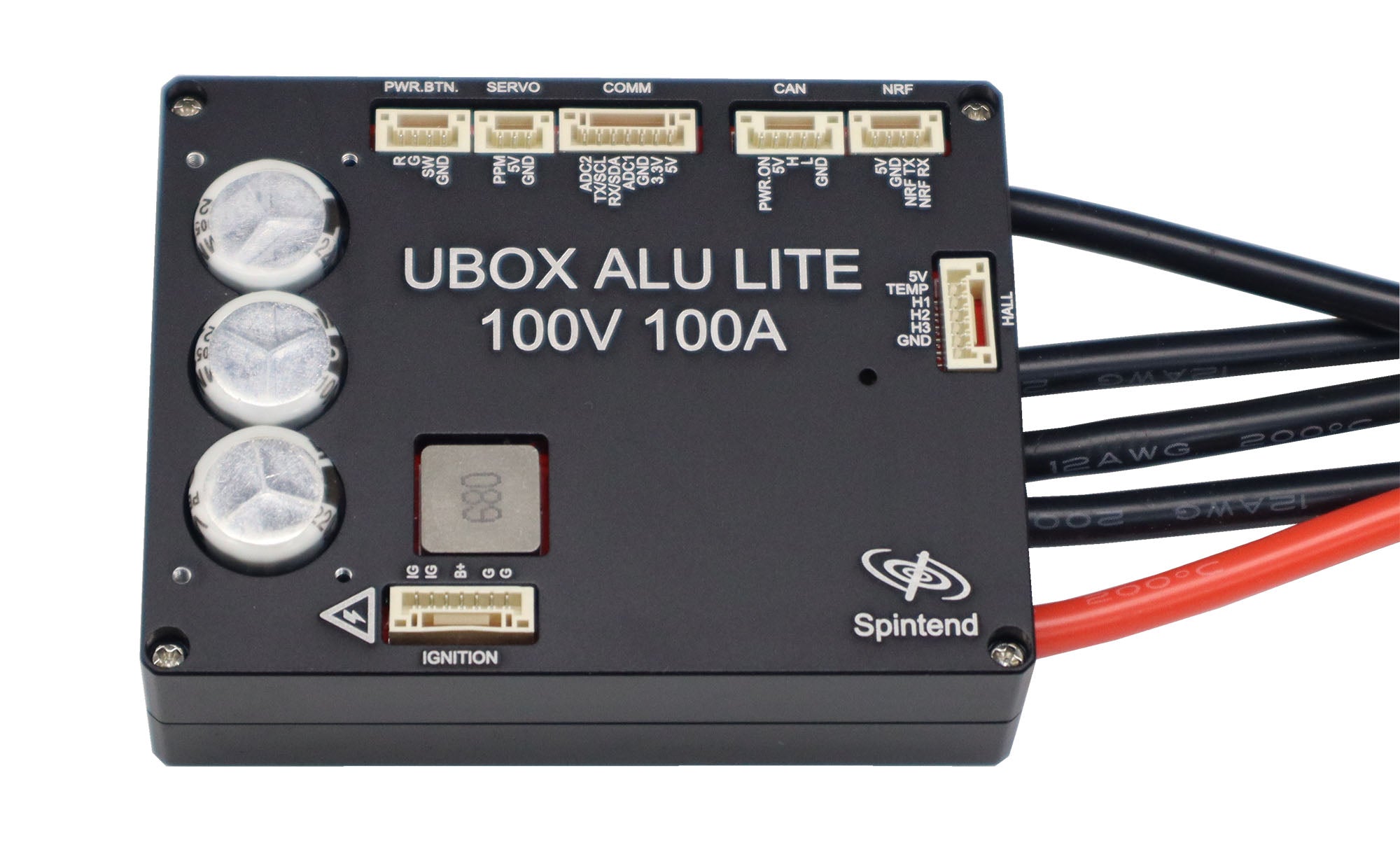

Single ubox Aluminum Lite controller 100V 100A based on VESC

Pictures to be updated, shipped final version

Electircal Spec:

• Firmware : compatible with vesc official firmware (Firmware Name in vesc tool:  UBOX_SINGLE_100)
• Voltage:  22S max （Firmware limit max voltage 96v）
• Current: 100A max (The duration depends on the temperature around the product, heat dissipation and air circulation）
• Ports available: PPM,UART(adc1/adc2),Canbus,Hall sensor,TypeC USB, NRF port, Ignite Key port, Power button port
• Cables and connectors:  10cm length(out of the alum case) 12AWG phase wires with 4.0mm female bullet connector, 10cm(out length) 12AWG battery cable with XT90 male connector
• Size: 58*75*22mm
• Added 3.3v/5v/ignite key port fuse protection
• Power button LED lights functional indication:
  • Normal--Solid green light
  • Abnormal--Blinking Red

Design Feature

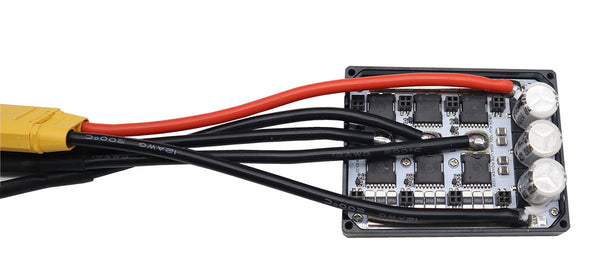

Aluminum Power board will transfer heat much quicker.

Super Compact Size, Convinient for your building.

Build inside BMI160 module,it's convinient for diy balanced board

 Ignite key port provide more option to turn on /off  ubox , and also offer easy way to take power from battery .

Shipping comes:

• Shipping will come with Aluminum case and latest firmware

• Accessory pack includes:
• power button*1
• ppm cable*1
• can bus cable*1
• hall sensor cable*1

• 5pin ignite port cable*1
• Multifunction cable(UART&ADC) *1
• NRF port cable*1

Firmware:

1. The product is shipped with latest firmware(6.2), using unlimited firmware will void warranty protection
2. Warning: Open source firmware has risky feature, Only hardware is in warranty protection.

User Manual to be updated
