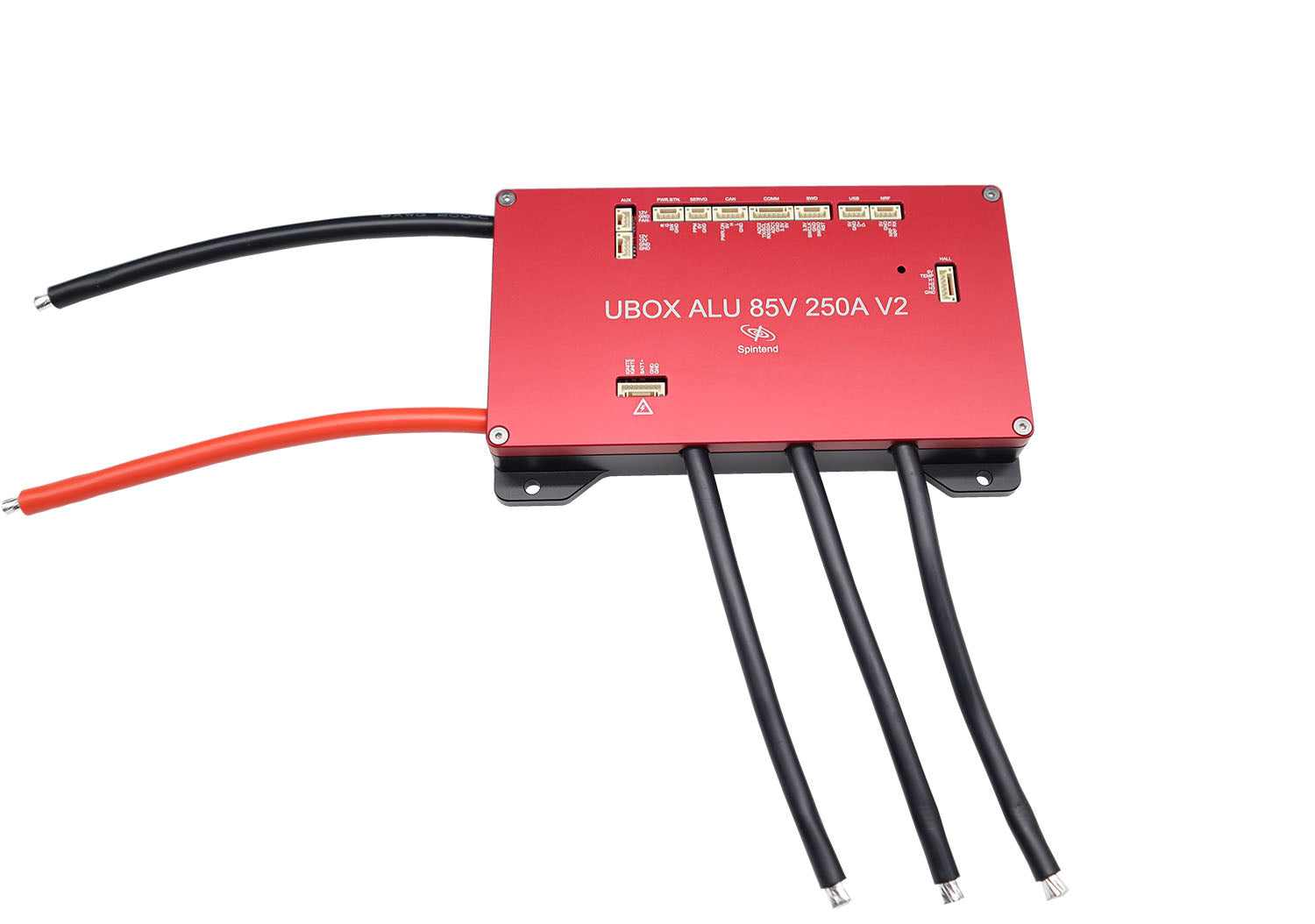

Single Ubox Aluminum controller 85V 250A V2 based on VESC

Warning! Don't try more than 85v power !

Electircal Spec:

• Firmware : shipped with custom firmware .
• 2 groups of 12v power port:
• 12v fan port: 3pin connector
• 12 power port : 4pin connector
• 12V port total current < 3A
• Voltage: Max voltage 85V
• Current: 250A max (The duration depends on the temperature around the product, heat dissipation and air circulation）

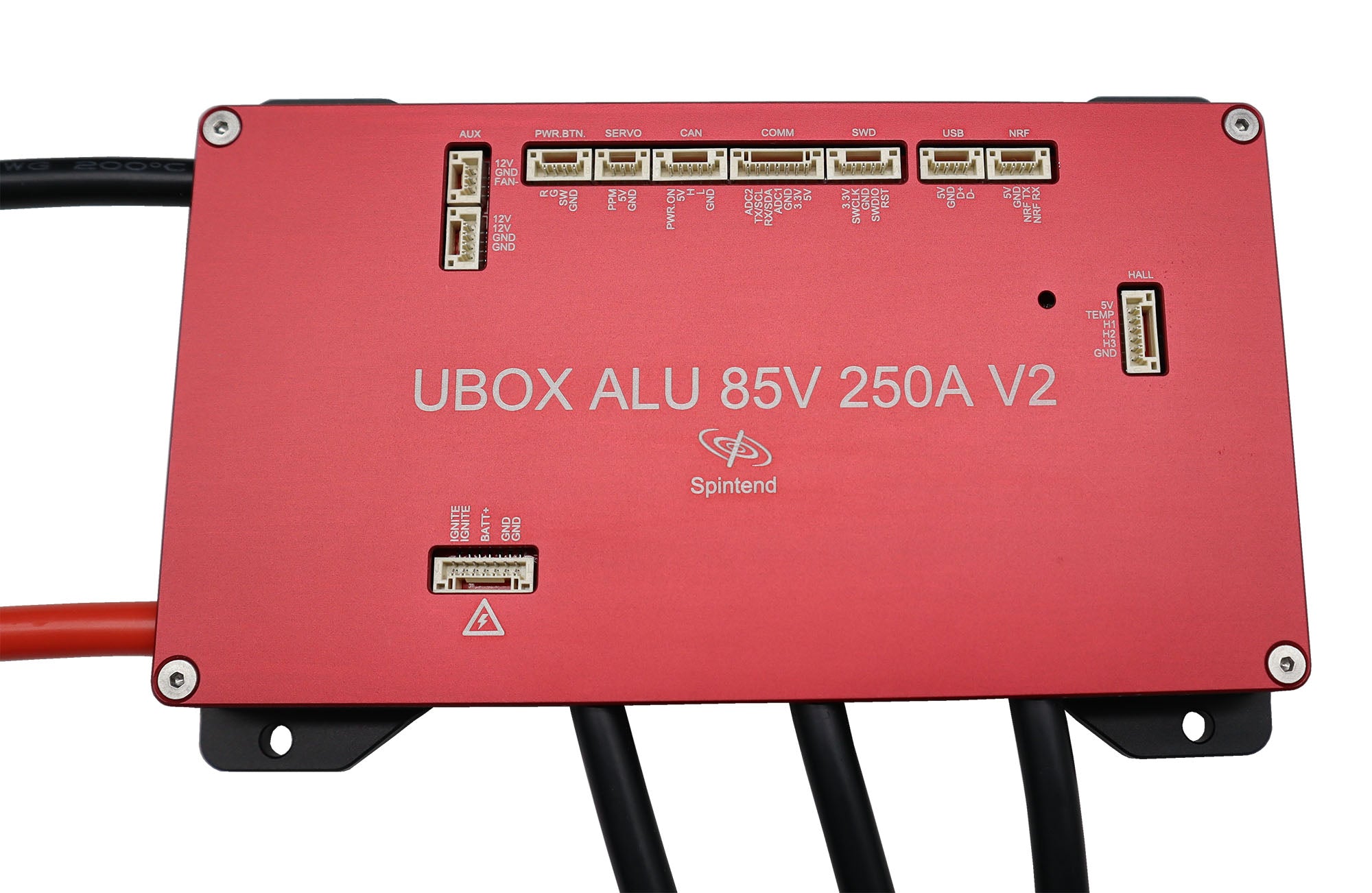

• Ports available: PPM,UART(adc1/adc2),Canbus,Hall sensor,TypeC USB, SWD port, NRF port, Ignite Key port, Power button port/12V power port *2
• Cables : 15cm 8AWG phase wires , 15cm 8AWG battery cables

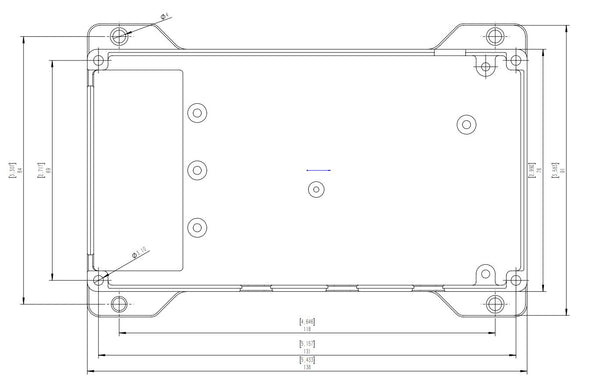

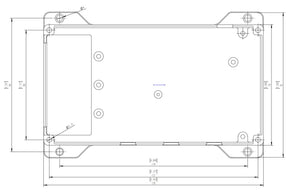

• Size: 139mm*92mm(Including bottom ears)*21.7mm / 139mm*76mm(Excluding bottom ears)*21.7mm
• Power button LED lights functional indication:
• Running--Green light
• Stop/begin throttling--Dim green
• Abnormal--Blinking Red
• Key Parts Spec:
• Mosfet Part No: JMSH1001ATL-13
• Current amplifier PN: INA240A1
• Off state current less than 200uA

Compare with Ubox alum 85V 250A v1 controller

       1.Same size and  Same electric function and feature

       2. What's the Difference bettween V2 and V1 controller ?

1. 1. Much cleaner design Logic board and outlook

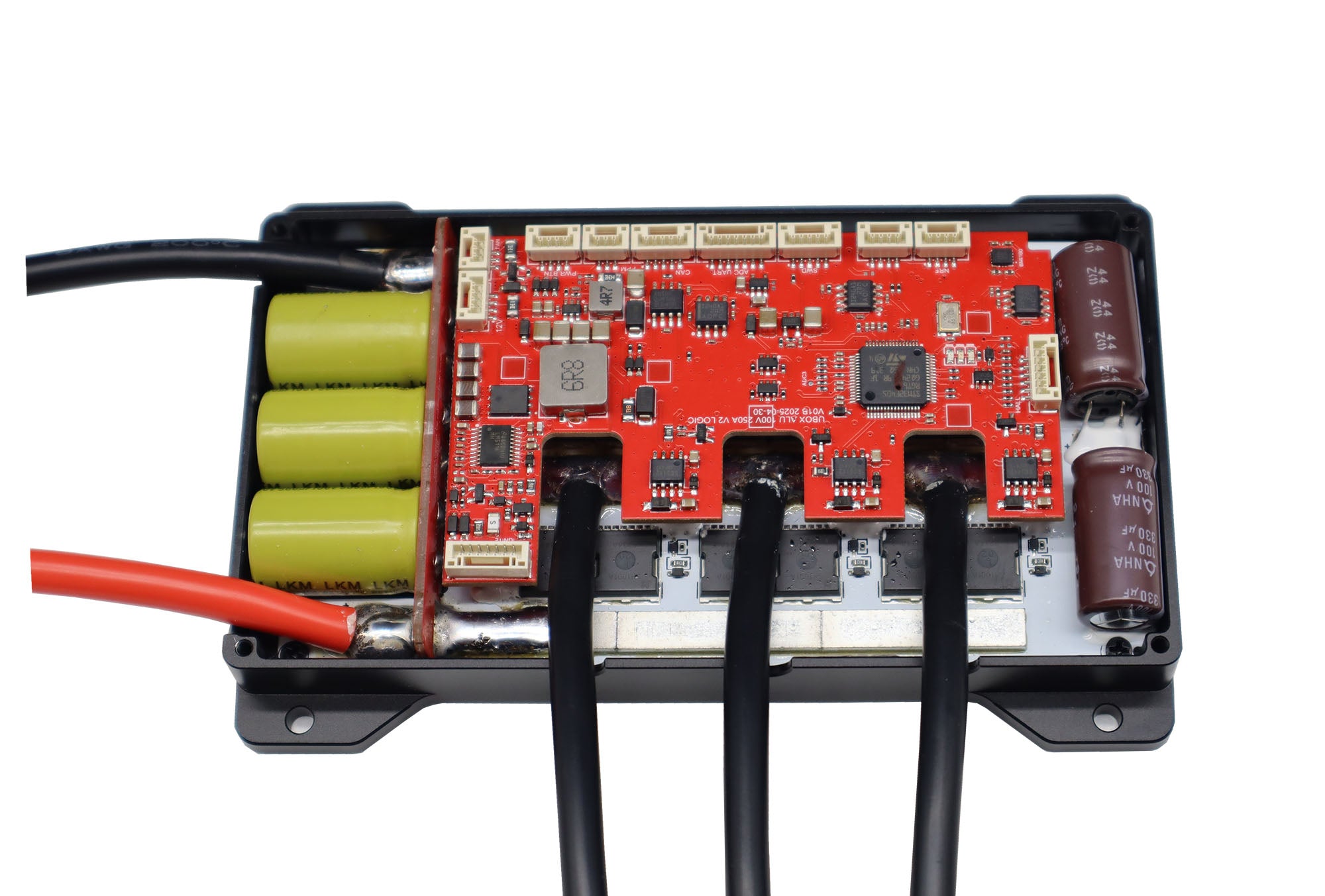

   2. Logic board design is different

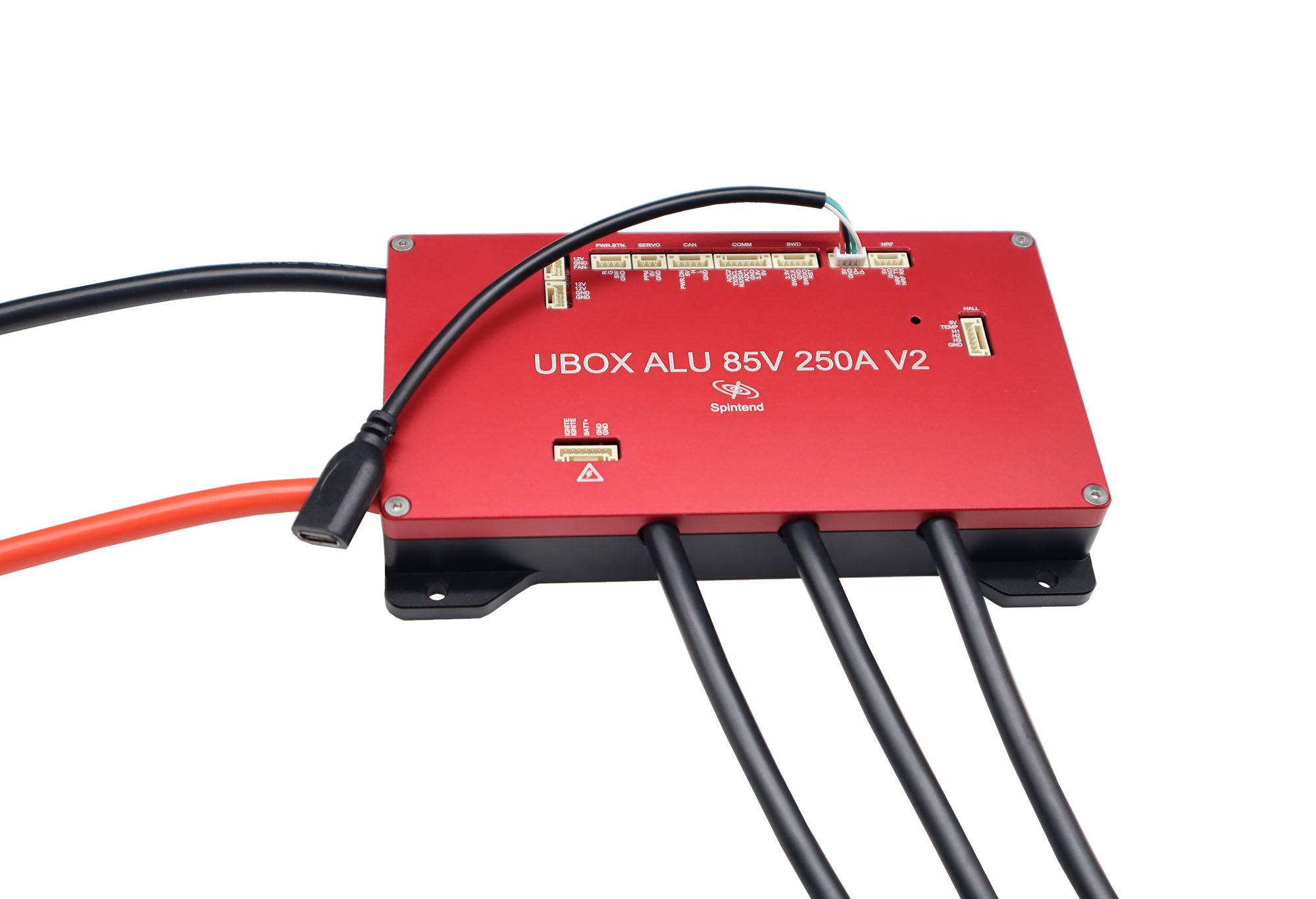

   3. USB cable Port  replaced the USB port

Shipping comes:

• Shipping will come with Aluminum case and latest firmware

• Accessory pack includes:
• Latching power button*1
• ppm cable*1
• can bus cable*1
• hall sensor cable*1
• 4pin 12v power cable*1
• fan port transfer cable*1
• 3pin ignite port cable*1
• Multifunction cable(UART&ADC) *1
• NRF port cable*1

Firmware:

1. The product is shipped with latest firmware 6.2, using unlimited firmware will void warranty protection.
2. Warning: Open source firmware has risky feature, Only hardware is in warranty protection.

User manual

Attention: Spintend reserve rights to do any change on the product without inform to those purchased before change, including but not limited to parts replacement and design for optimization.
