Two way throttle SPIN-Y2 for diy escooter diy ebike

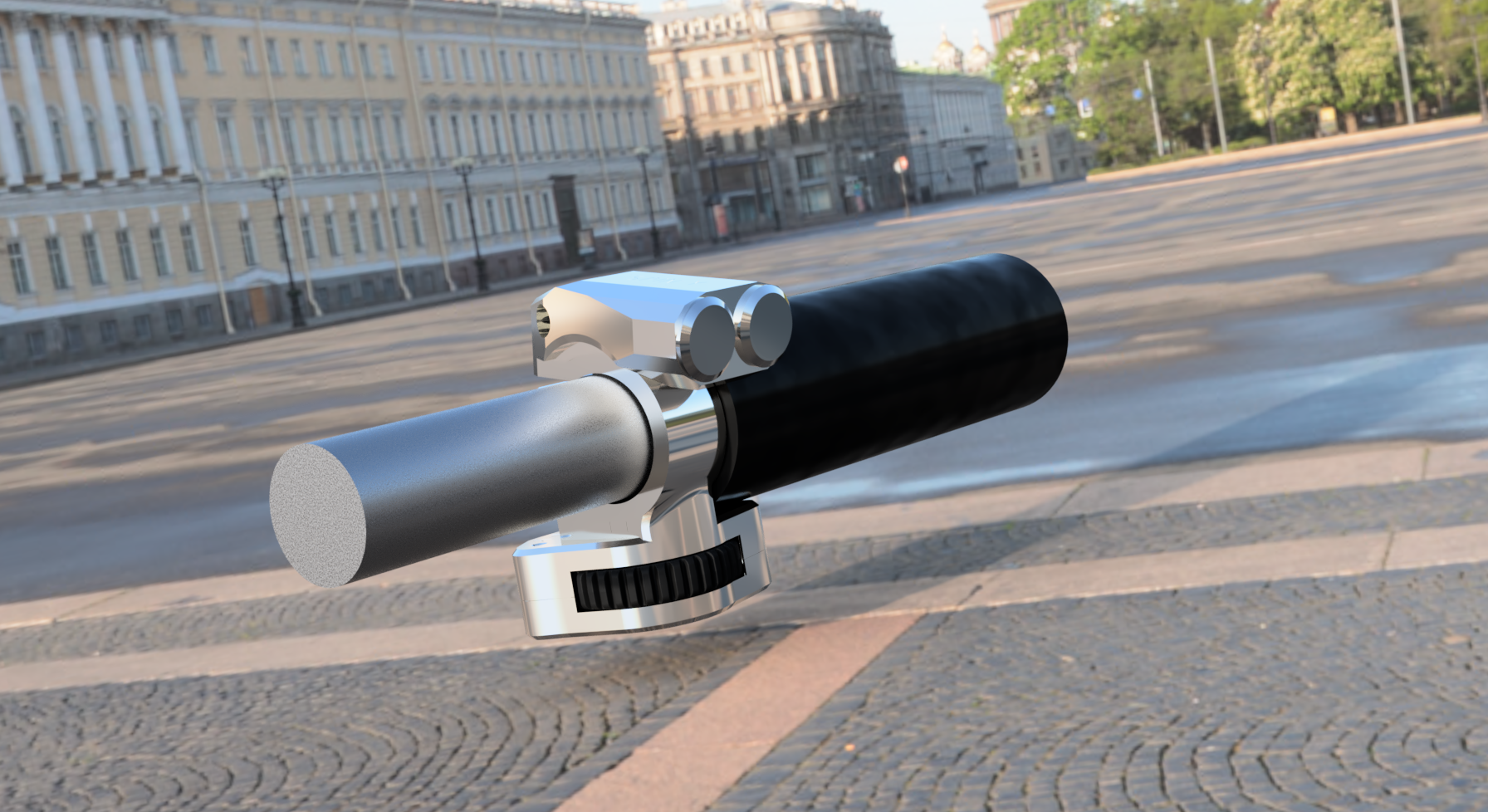

Spin-Y2 Two way throttle for diy escooter diy ebike
Electrical Spec:
- Maximum Hand grip, specially at full throttle!
- Bidirectional operation (forward accelerate, backward e-braking)
- Remapped 0-3.3v signal, extend the hall range to get more interference immunity, and safe for VESC and similar controllers compared to common 5V throttles.
- 5v signal out put for All standard controllers like Minimotors/ Dualtron/ zero/ Vsett and others.
- Variable e-brake up on reverse scroll
- Standard controllers use it mid to max as throttle only, can block with screw backward rotation!
- On/off brake line for basic controller when scroll back over -20%
- Full Aluminum CNC body
- Waterproof coated electronics
- Online Manual / installation guide
- Modular buttons can be installed with direct fit with no extra screws!
- Size : fit for 22mm (7/8'') handlebar. Tolerance: +0.2mm
- Cable Length: 1.5m
Button Module Spec:
- Max current 2A ,12V
- Size : 12mm diameter, 0.75mm pitch
- Shippings: come without cables, and un-assembled
Cable Functions：
| Color | Function | Explanation |
| Black | -GND | Negative power supply, and low side of rear button and E-brake switch |
| Red | +3.3/5V | Positive power supply, can accept 3.3-5V, recommend 5V |
| White | VESC Throttle | VESC ADC1, centered (bidirectional) |
| Green | Normal Throttle | One way signal for normal controller(ESC), NOT for VESC |
| Yellow | E-Brake ON/OFF | ON/OFF to GND for ESC brake |
| Blue | E-Brake Variable | Variable brake for ESC that support it, like ninebot, xiaomi, Sabvoton, Kelly and other |
| Orange | Rear button | Attention !for spiny v2, keep this cable UNWIRED! the button has cruise function internally. |
Reminds: If you're using our ewheel adc adapter v2 to wire SPIN-Y2, then you should NOT use VESC Throttle, but to use a Normal Throttle.
Warning:
1.Throttle can not disengage Cruise when driver presses Brake Lever - scooter will slowdown with motors disengaged as long as you hold the lever, but once Brake lever released Scooter will get back to Cruise speed. (it is useful feature in city driving in lower power mod, but Be careful in high power modes)
2.“End point Configuration” process will start your motors spinning, have your scooter on a riser (wheels in the air)
3.There is a super short screw in bottom cover, the original purpose is to increase friction and prevent the inertia rebound of the internal spring. If you don’t like it, can remove it, and need to tape the screw hole to prevent dust in.
4. NAMI scooters does not support ebrake function.
Function Feature Display
All Screws are electroplated hex countersunk.
How to solder button cables?
User manual check here
