Rated Voltage: 600V
-
Temperature Range: -60°C to 200°C
-
Conductor: Tinned Copper (TS)
-
Outer Diameter Tolerance: ±0.1mm
-

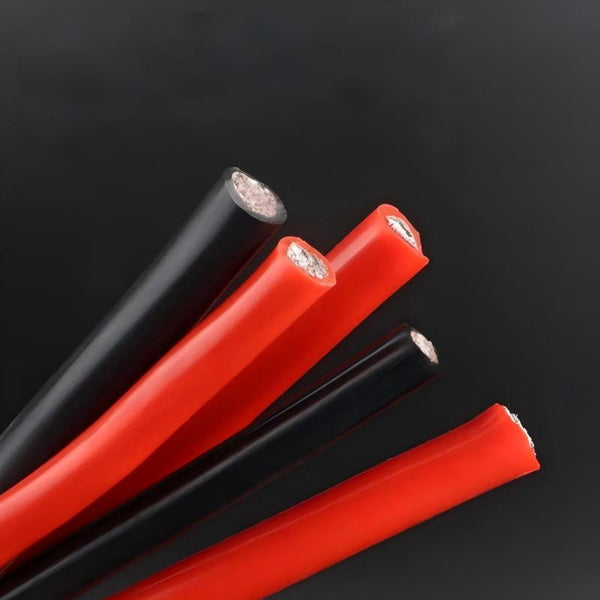

Available Colors: Red, Black, Blue, Yellow, Green
-

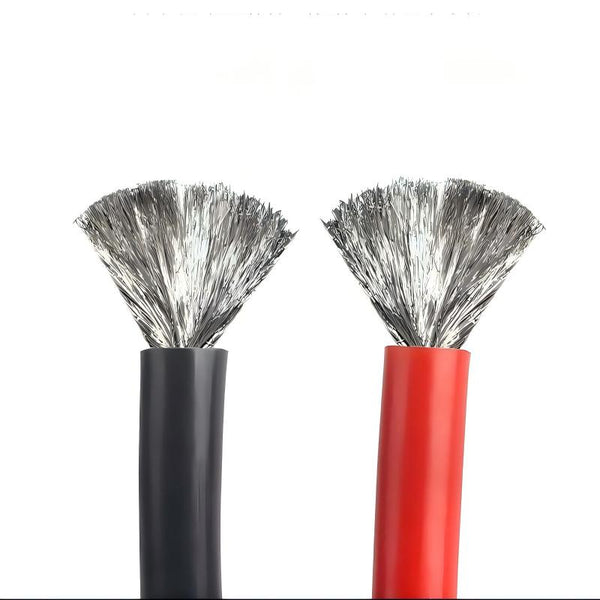

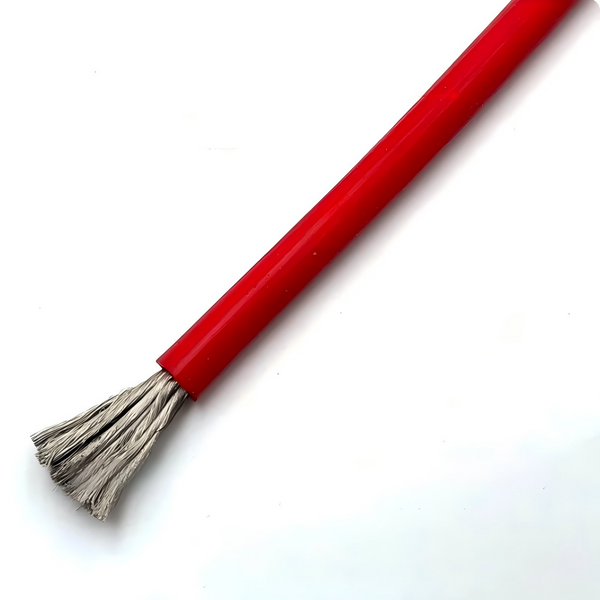

Ultra-Flexible: High strand count for easy routing and vibration resistance
-
High Current Capacity: Up to 500A (3AWG)

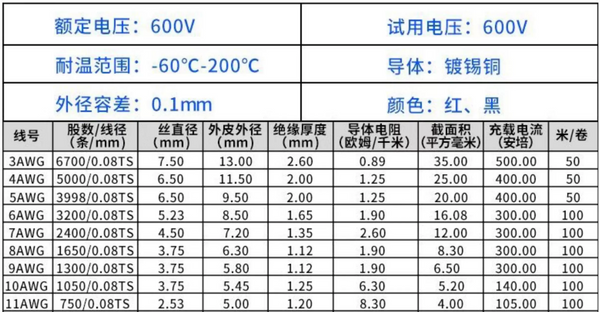

| AWG |
Strands/Diameter (pcs/mm) |
Wire Diameter (mm) |
Outer Diameter (mm) |
Insulation Thickness (mm) |
Conductor Resistance (Ω/km) |
Cross-Section (mm²) |
Max Load Current (A) |
Meters/Roll |
| 7AWG |
2400/0.08TS |
4.50 |
7.20 |
1.35 |
2.60 |
12.00 |
300.00 |
100 |
| 8AWG |
1650/0.08TS |
3.75 |
6.30 |
1.12 |
1.90 |
8.30 |
300.00 |
100 |
| 10AWG |
1050/0.08TS |
2.99 |
5.45 |
1.25 |
6.30 |
5.20 |
140.00 |
100 |
| 12AWG |
680/0.08TS |
2.40 |
4.50 |
1.05 |
10 |
3.40 |
70.00 |
100 |
