Regular price $159.00 Sale price $155.00
Unit price  per

 Electircal Spec:

  • Firmware : shipped with custom firmware, compatible with VESC official 100V/250A firmware (Firmware Name: VESC_UBOX_SINGLE_80_FW)
  • 2 groups of 12v power port:
    • 12V fan port: 3pin connector
    • 12V power port : 4pin connector
    • 12V port total current <3A
  • Voltage:  max 85v
  • Current: 150A max (The duration depends on the temperature around the product, heat dissipation and air circulation)
  • Ports available: PPM,UART(adc1/adc2),Canbus,Hall sensor,TypeC USB, SWD port, NRF port, Ignite Key port, Power button port/12V power port *2
  • Cables and connectors:  12cm 10AWG phase wires with 4.0mm female bullet connector, 12cm 10AWG battery cable with XT90 male connector
  • Size: 102*57*21mm
  • Power button LED lights functional indication:
    • Running--Green light
    • Stop/begin throttling--Dim green
    • Abnormal--Blinking Red

Design Feature

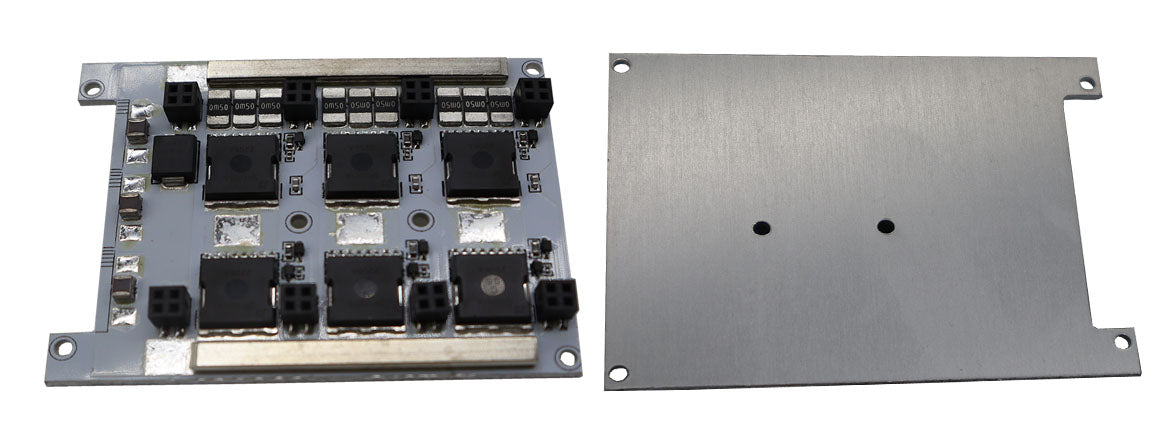

Aluminum Power board will transfer heat much quicker.

spintend ubox aluminum design

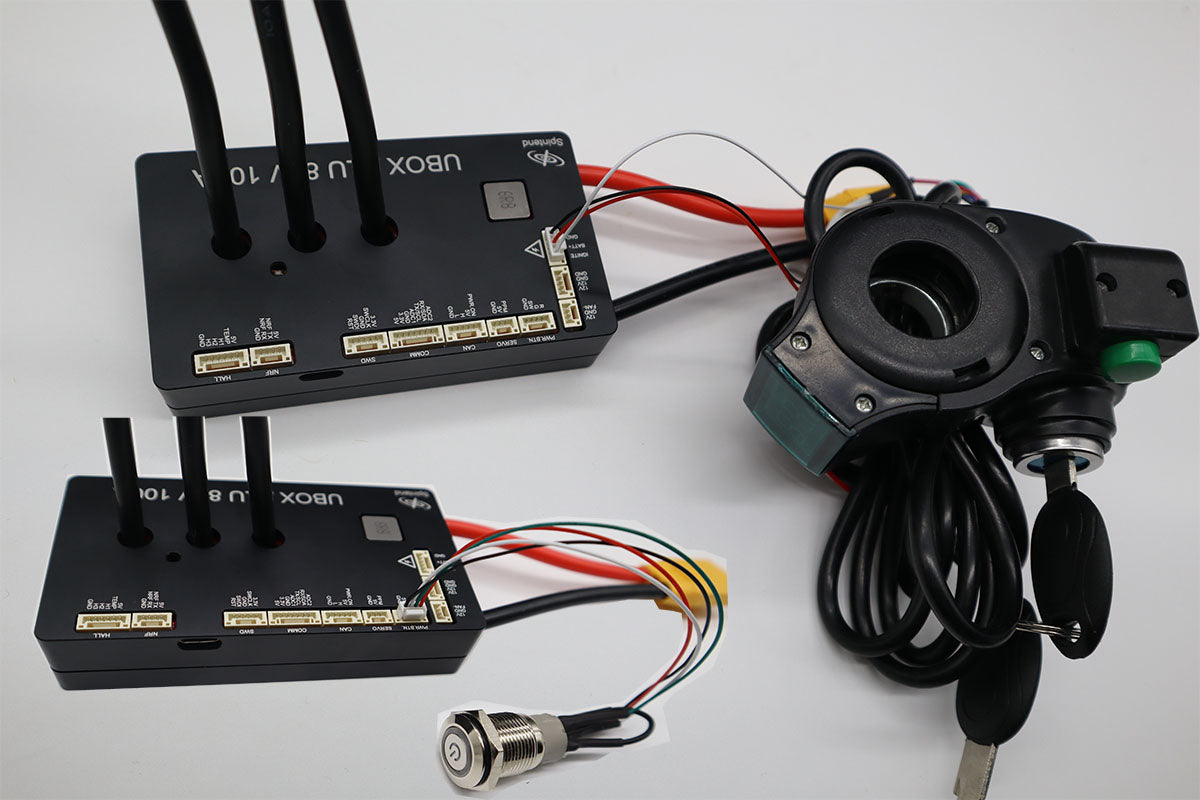

Three ways to turn on off controller, choose either one by your convinience

Can power on :  use one power button , it can turn on/off two single ESC via can bus cable.

two options for turn on off ESC

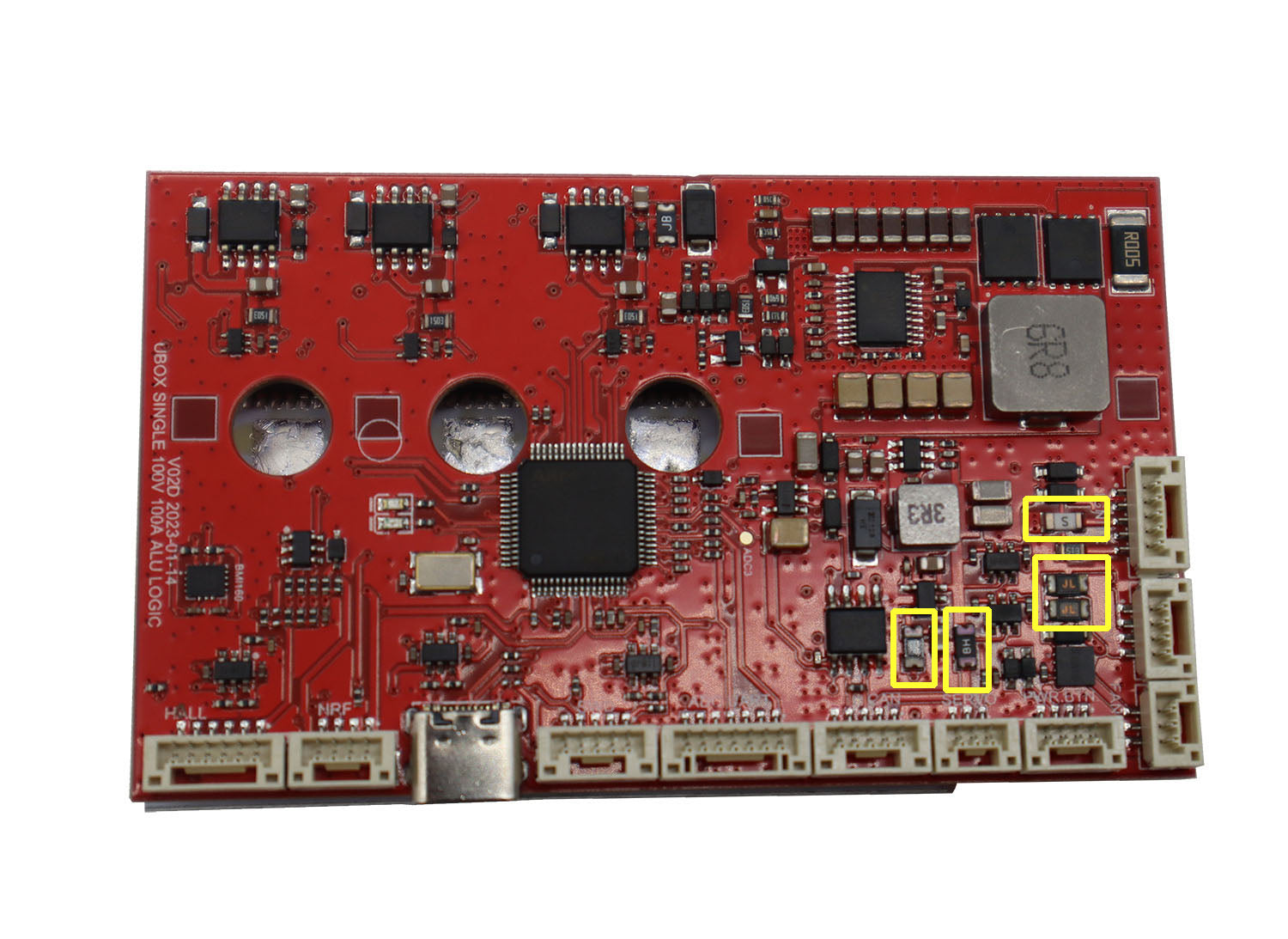

All power circuit(12v/3.3v/5v) is protected by recovery fuse,so does to ignite port

spintend ubox aluminum logicboard power port is protected by fuse

2pcs 12v power supply port, for lights and fan or other. Extra one NRF port for bluetooth or 2.4Ghz receiver, will make COM port spare for other application.

Build inside BMI160 module,it's convinient for diy balanced board

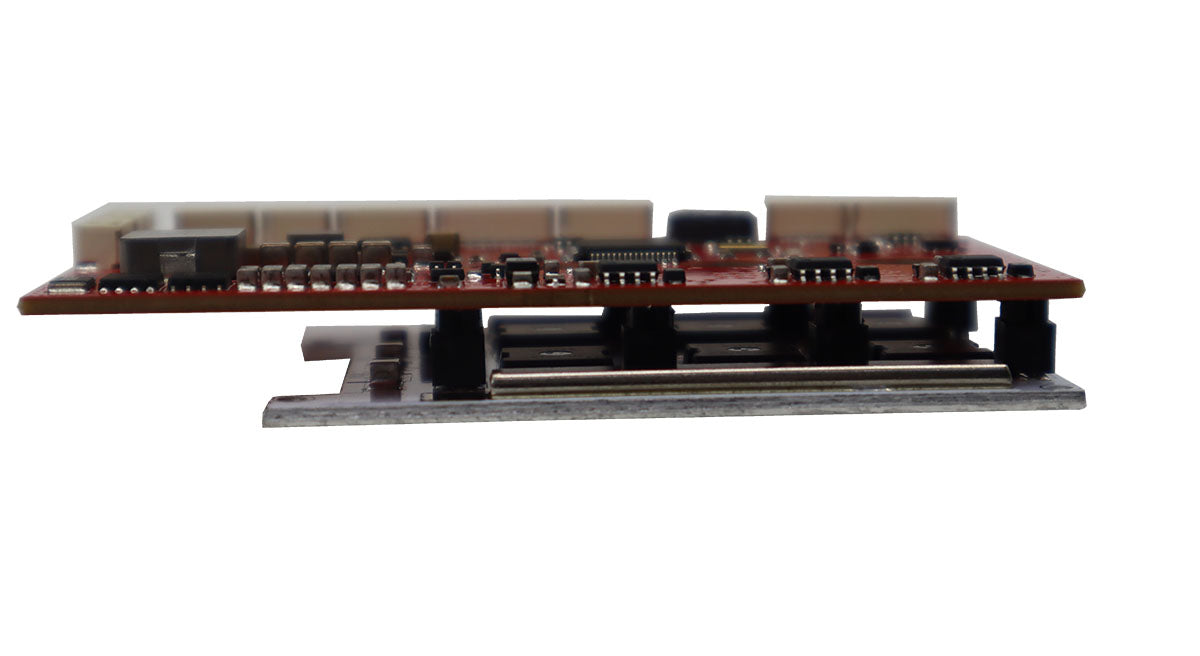

Stack two PCBAs design for better cooling solution and reliable structure

Ubox aluminum stack pcba design for better cooling

Shipping comes:

  • Shipping will come with Aluminum case and latest firmware

  • Accessory pack includes:
    • Latching power button*1
    • ppm cable*1
    • can bus cable*1
    • hall sensor cable*1
    • 4pin 12v power cable*1
    • fan port transfer cable*1
    • 3pin ignite port cable*1
    • Multifunction cable(UART&ADC) *1
    • NRF port cable*1

Firmware:

  1. The product is shipped with latest firmware(6.2), using unlimited firmware will void warranty protection
  2. Warning: Open source firmware has risky feature, Only hardware is in warranty protection.

User Manual

Wiring diagram for diy two motor scooter
